CRUST WOMBAT GEARED FRAME
CRUST WOMBAT GEARED FRAME
Couldn't load pickup availability

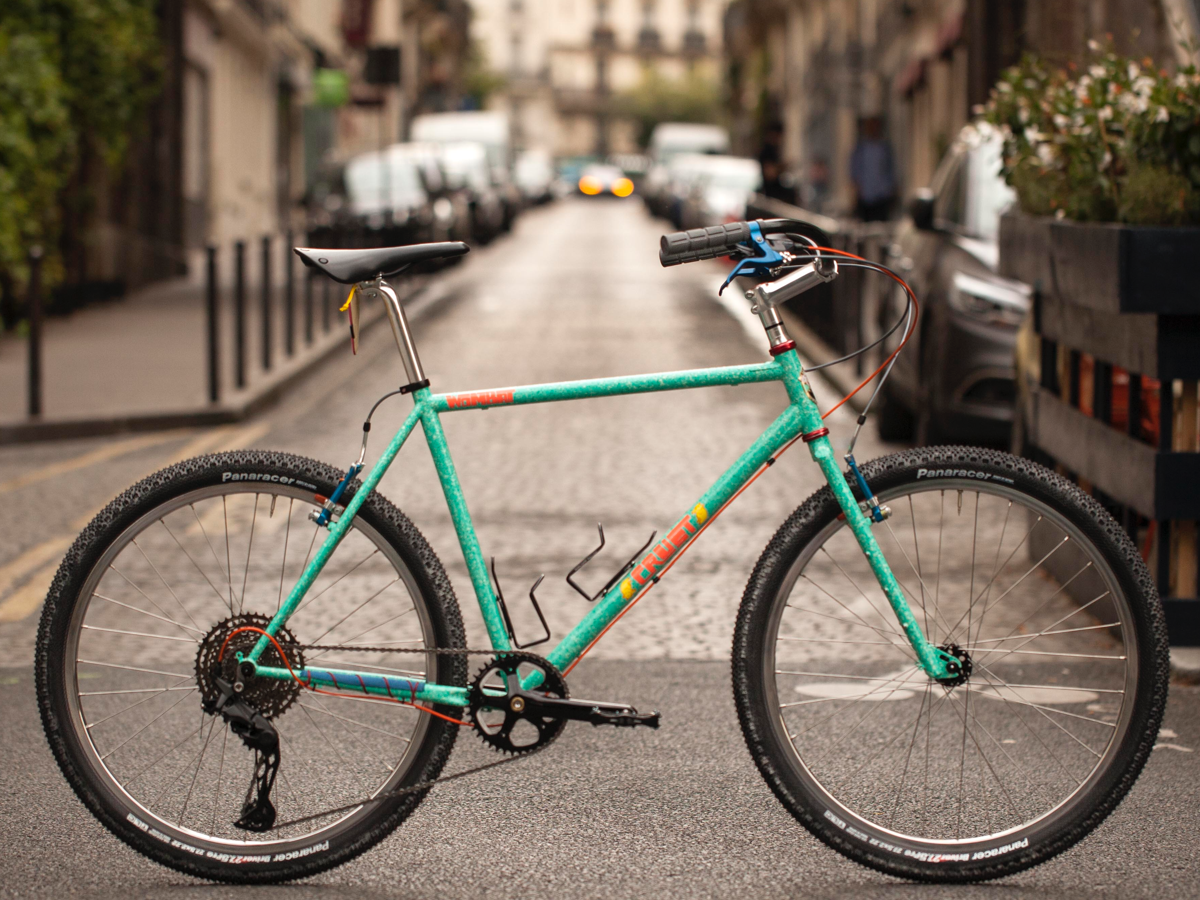

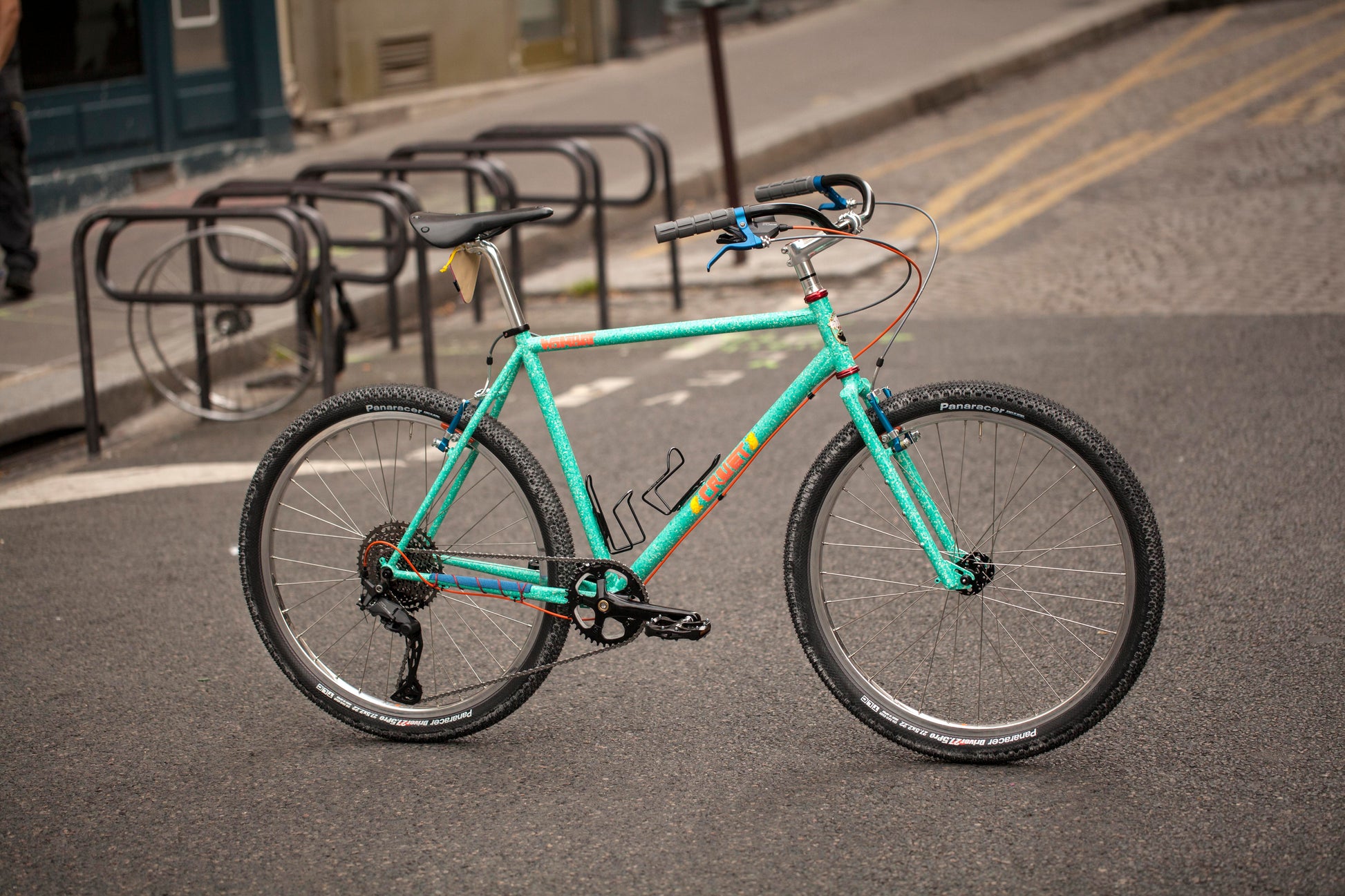

The Crust Wombat Geared Frame is the perfect balance of fun and functionality. It's designed for riders looking to hit the trails with a derailleur hanger, giving the Wombat some gearing flexibility while maintaining its signature playful geometry. Based on Garrett's original single-speed Wombat, this version is designed to be versatile, with added features for gear compatibility and long-distance adventures.
The Wombat is built for riders who want a capable, no-nonsense bike for dirt roads, trails, or even off-the-beaten-path touring. It offers a high bottom bracket for extra ground clearance, a short back end for maneuverability, and a frame designed to hold up on rough terrain while still being fun and nimble.
Build Notes:
-

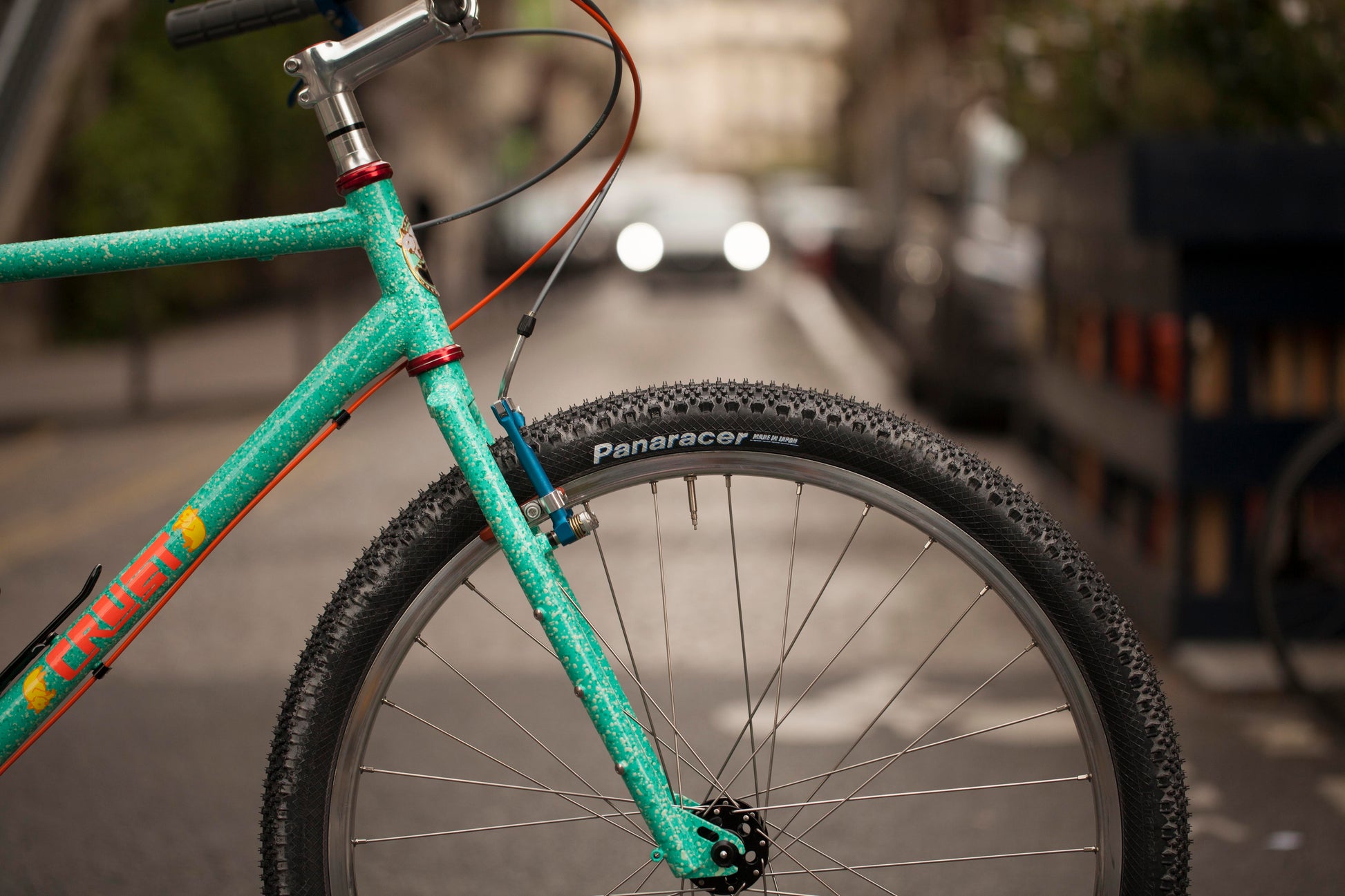

Tire Compatibility: Fits up to 27.5x2.6" tires, with clearance for 2.8" tires in the rear triangle. For more speed, the 2.2" UltraDynamico MARS tires are a great choice.
-

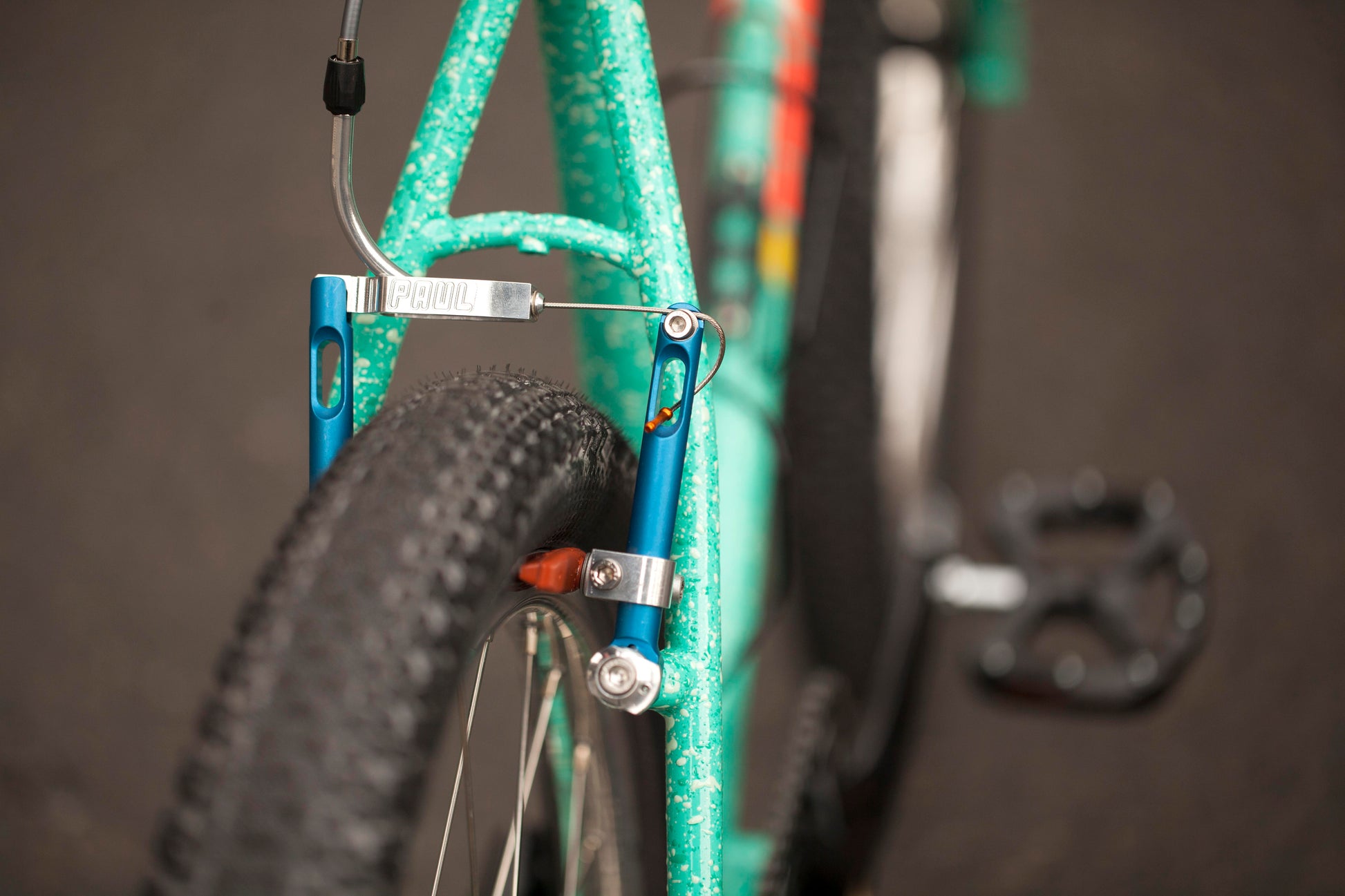

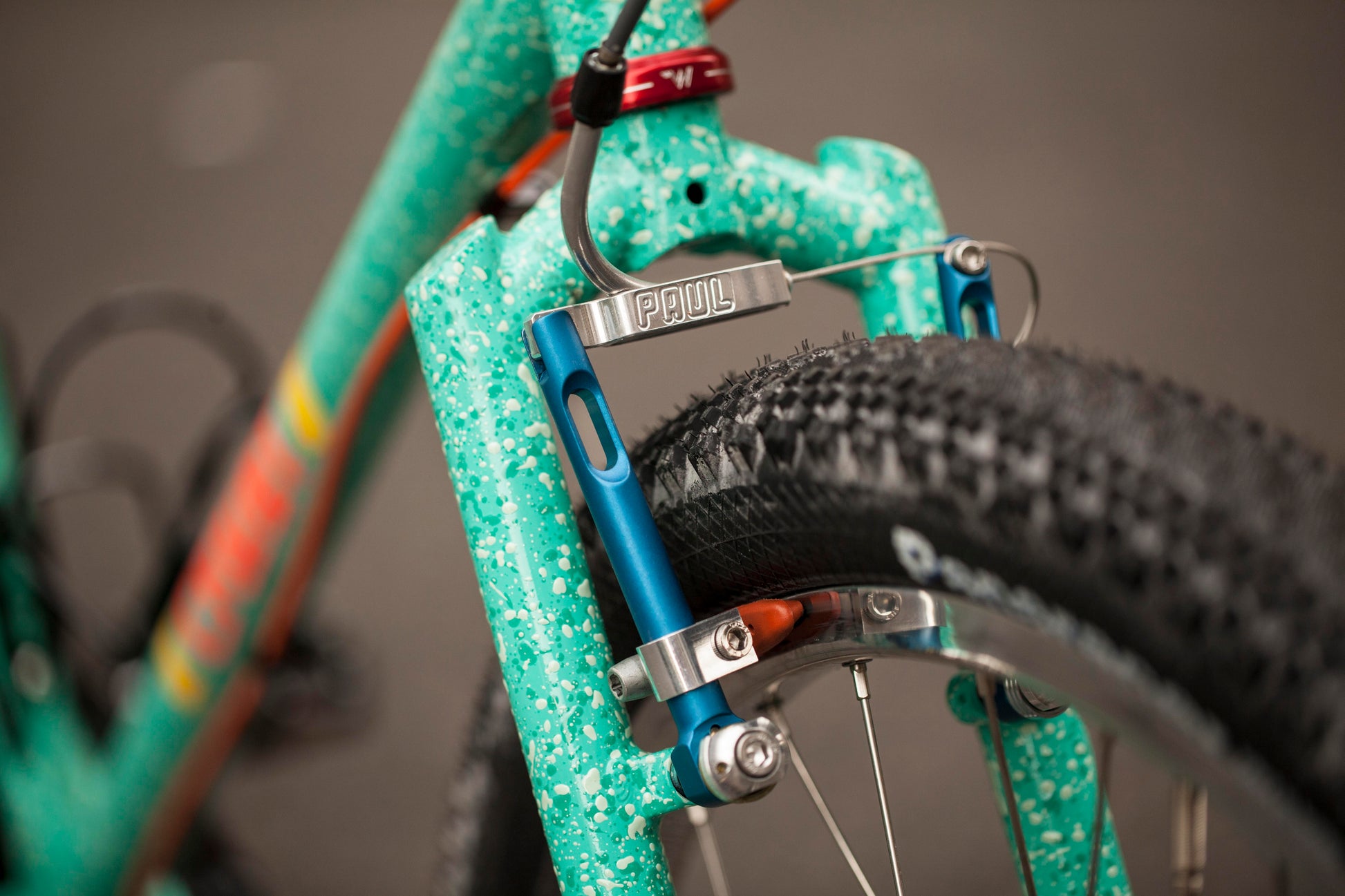

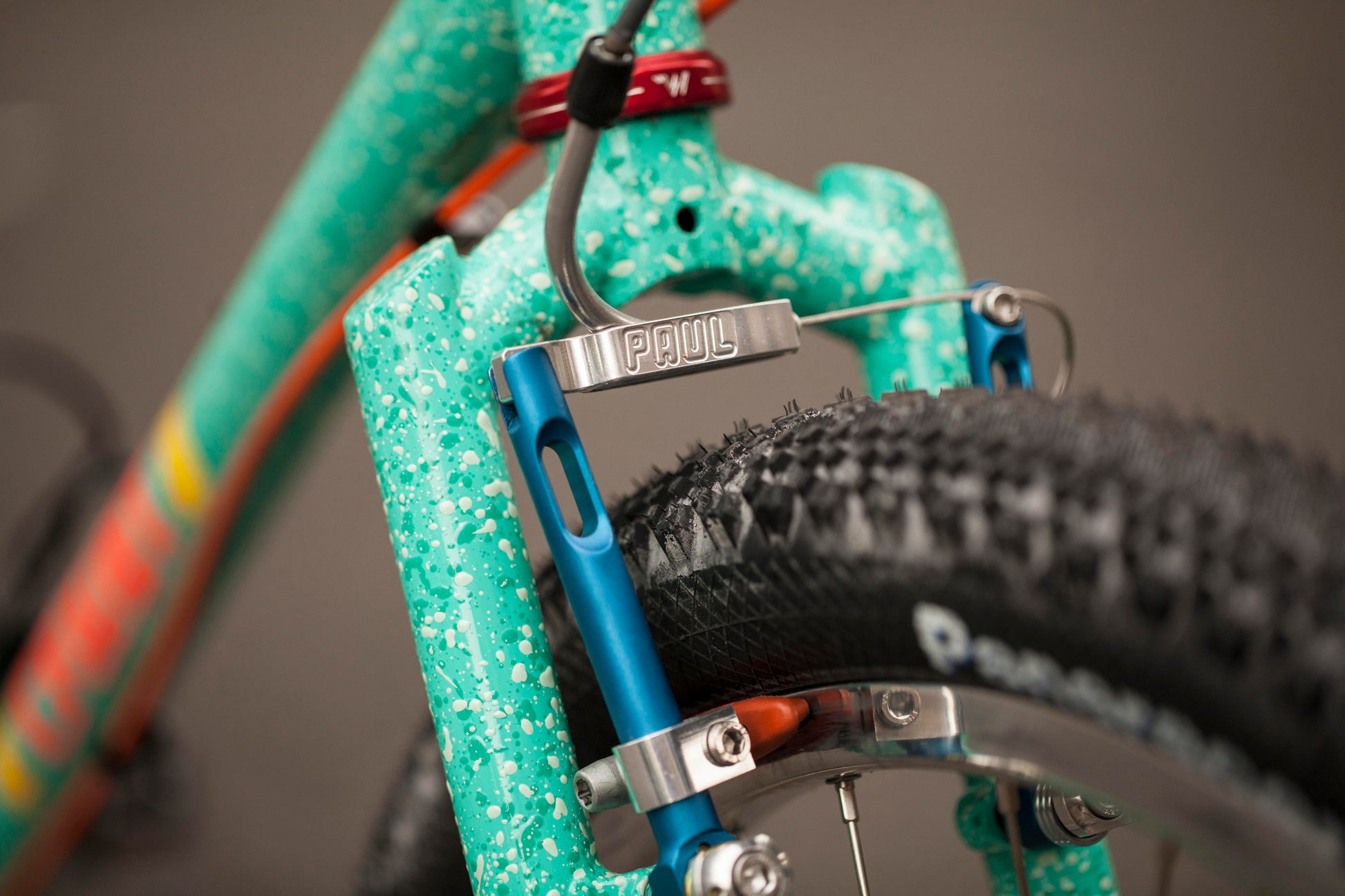

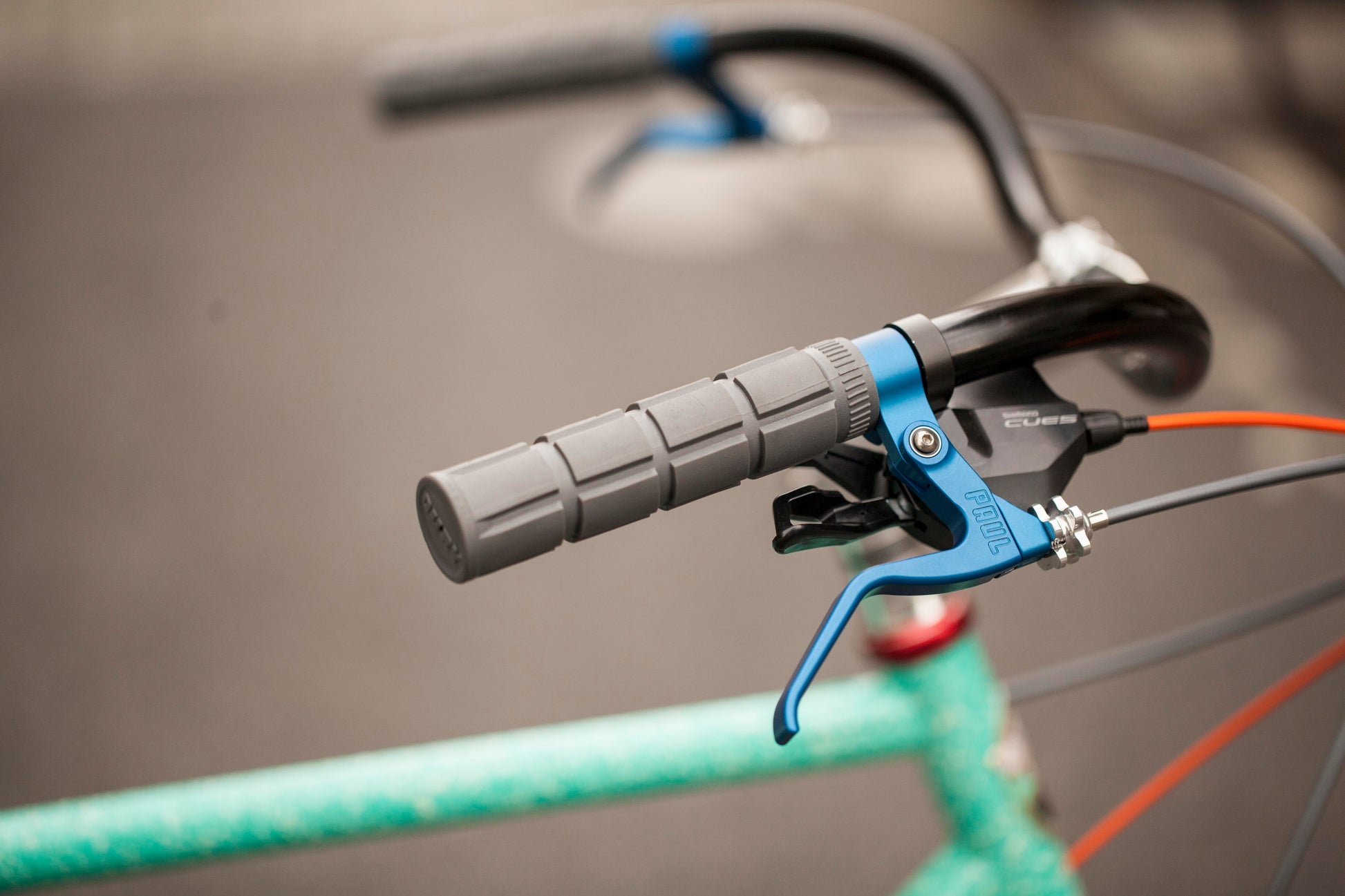

Brake Compatibility: Designed for V-brakes for maximum stopping power on descents, though it can also fit cantilever brakes if preferred.
-

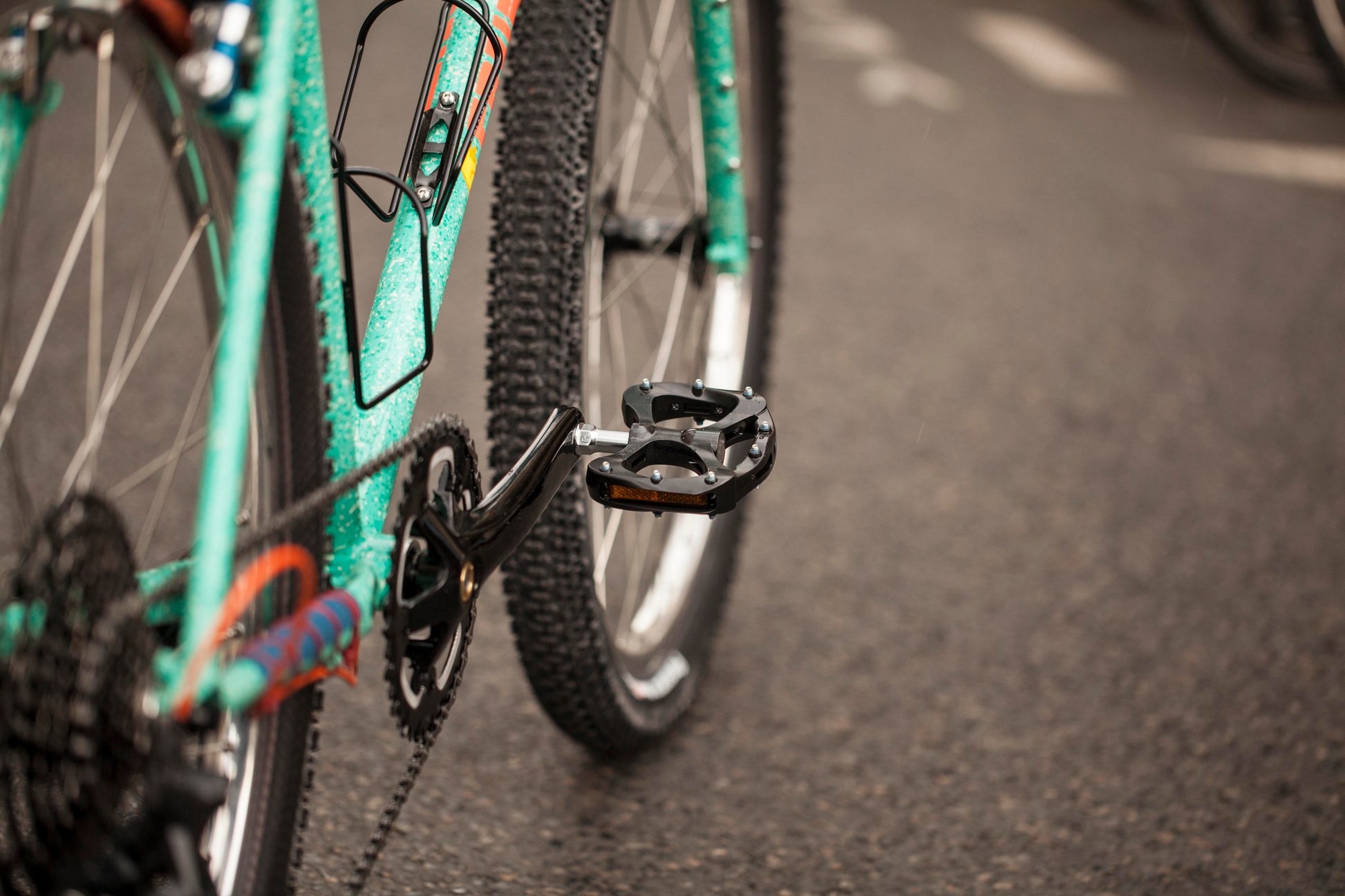

Crank Compatibility: The frame accepts a mountain crank, ideally a 1x setup with a 36t chainring. You can go 2x, but you'll need to figure that out yourself.
-
Dropper and Dynamo Routing: The frame comes with internal dropper post routing, ideal for a 100mm dropper, and internal dynamo routing for night riding.
-
Mounts and Accessories: It features three-pack mounts on the fork for extra cargo, along with fork crown and brake post mounts for a bag support.
-
Versatile Setup: The frame works well with both 1x and internally geared hub setups, with adjustable rocker dropouts.
Key Features:
-
Designed with vertical rear dropouts and a replaceable derailleur hanger.
-
Big front triangle for easy frame bag fitting.
-
Excellent tire clearance for dirt or gravel tires.
-
Ideal for long-distance touring or technical trail riding.
-
ED Coated for protection against corrosion and the elements.
Ideal for:
-
Riders who want a bike that can do it all—gravel, trails, and bikepacking.
-
Adventurers who need a bike that’s fun, functional, and ready for the long haul.
-
Those looking for a bike with classic geometry and modern gearing compatibility.
Specifications:
-
Material: Handmade in Taiwan with Heat Treated Chromoly
-

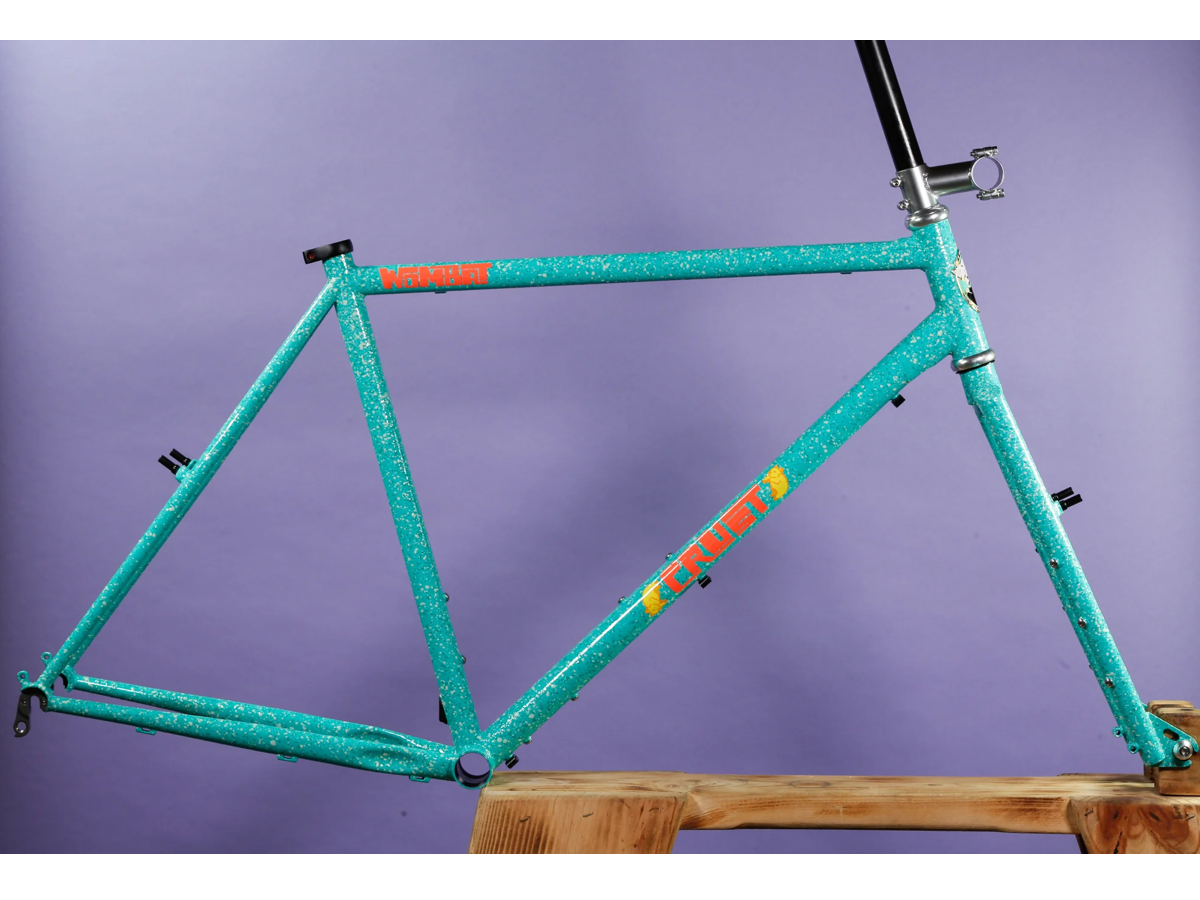

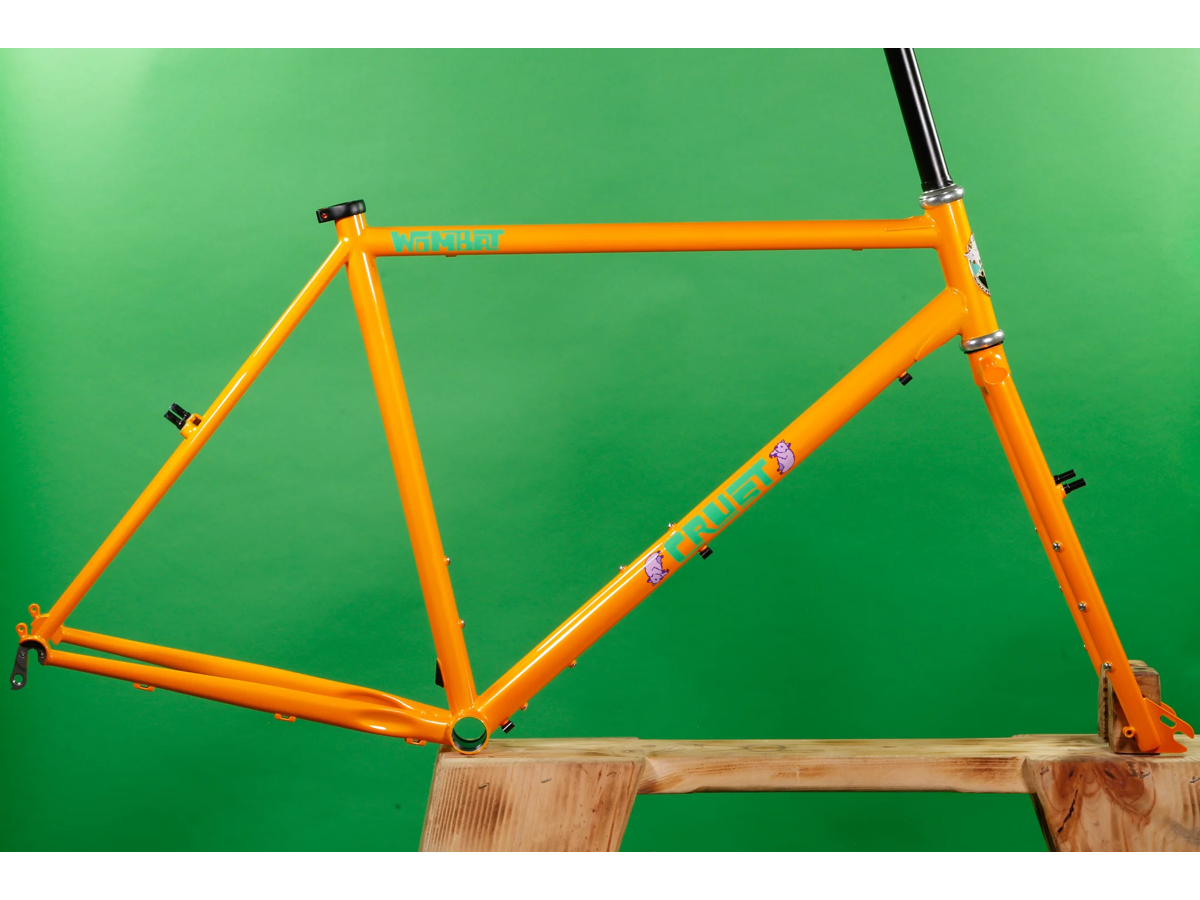

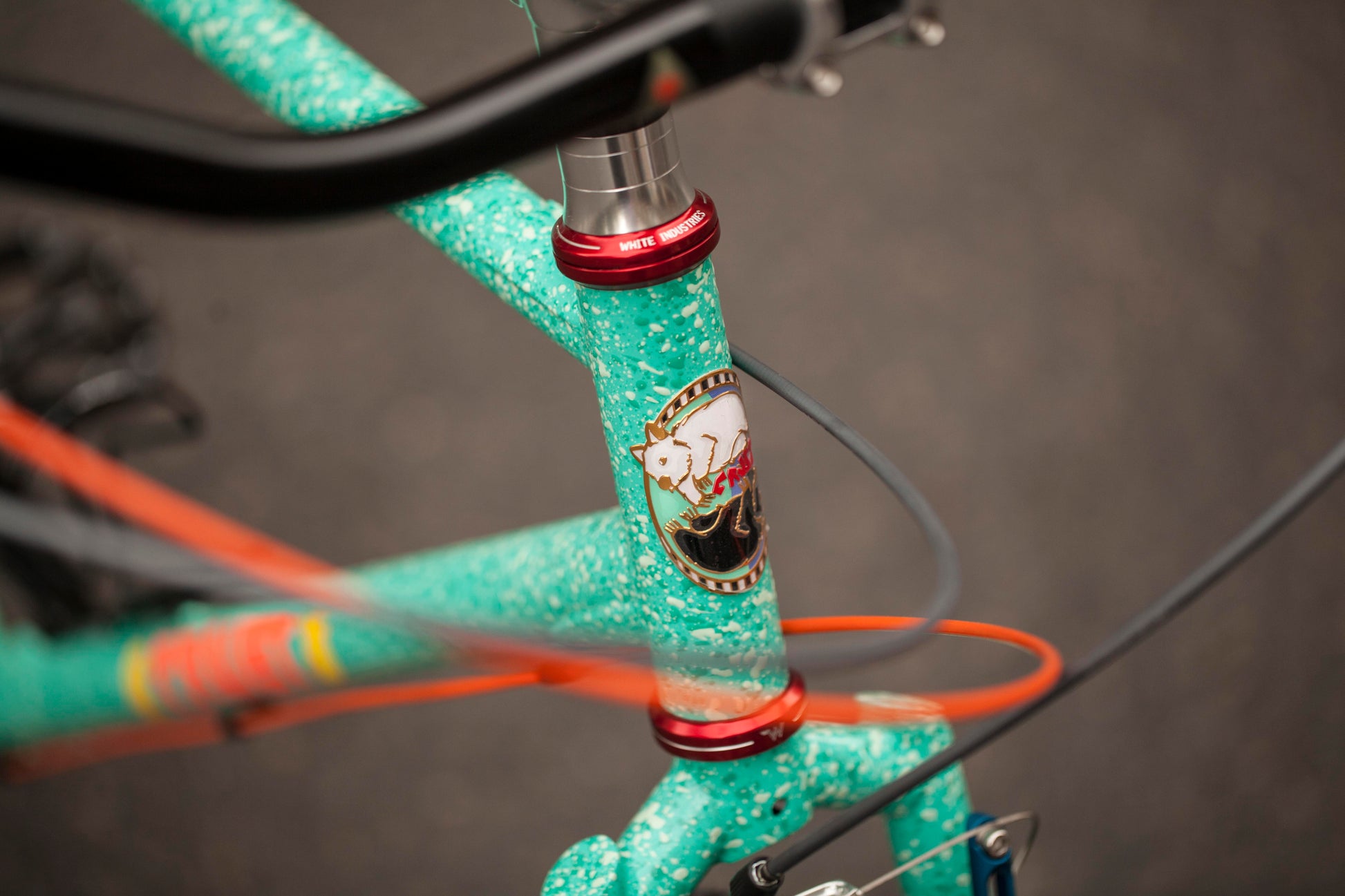

Colors: Teal & Green Speckle, Metallic Tangerine
-
Sizes: Small (17"), Medium (19"), Large (21"), Extra Large (23")
-

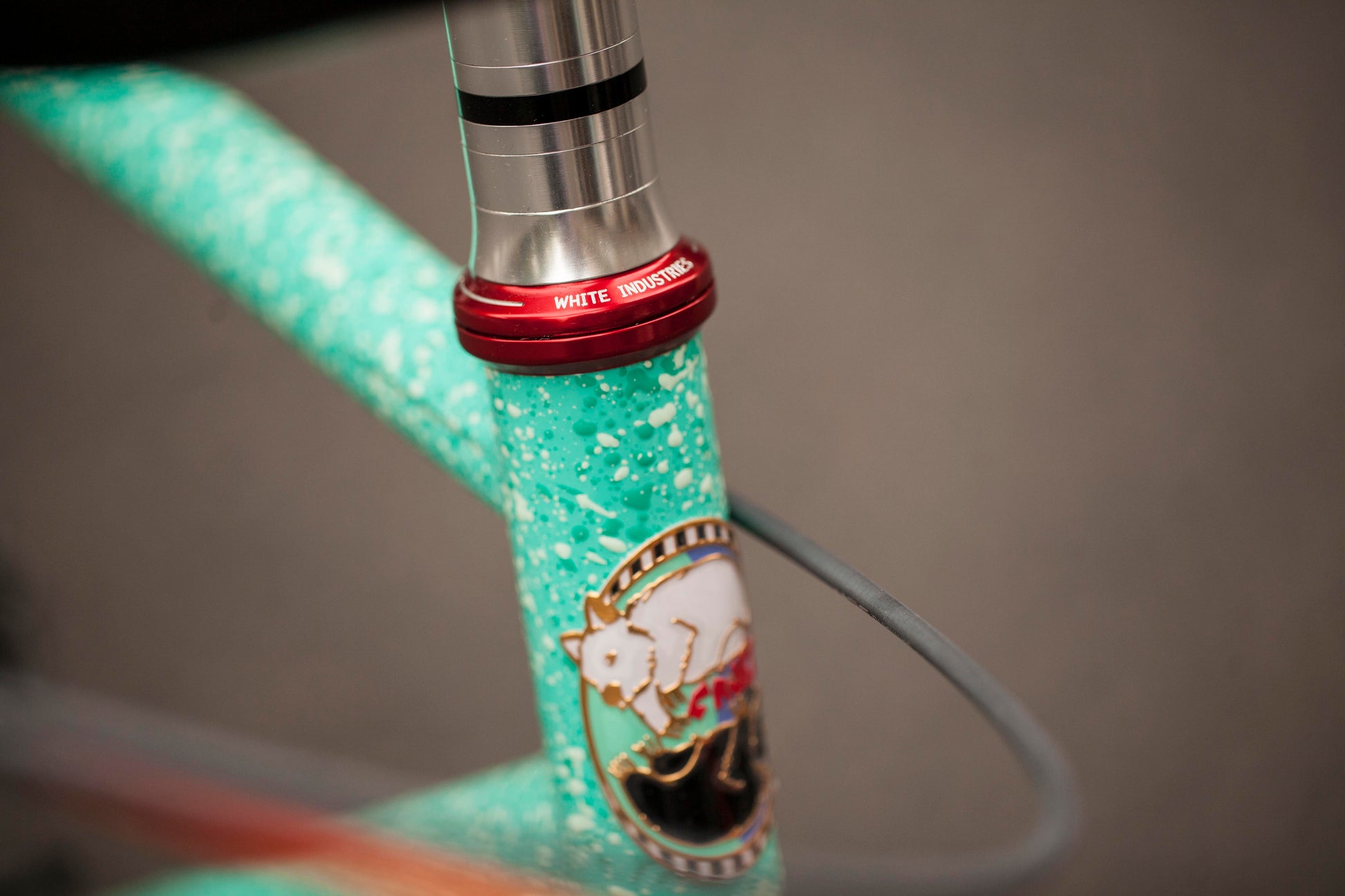

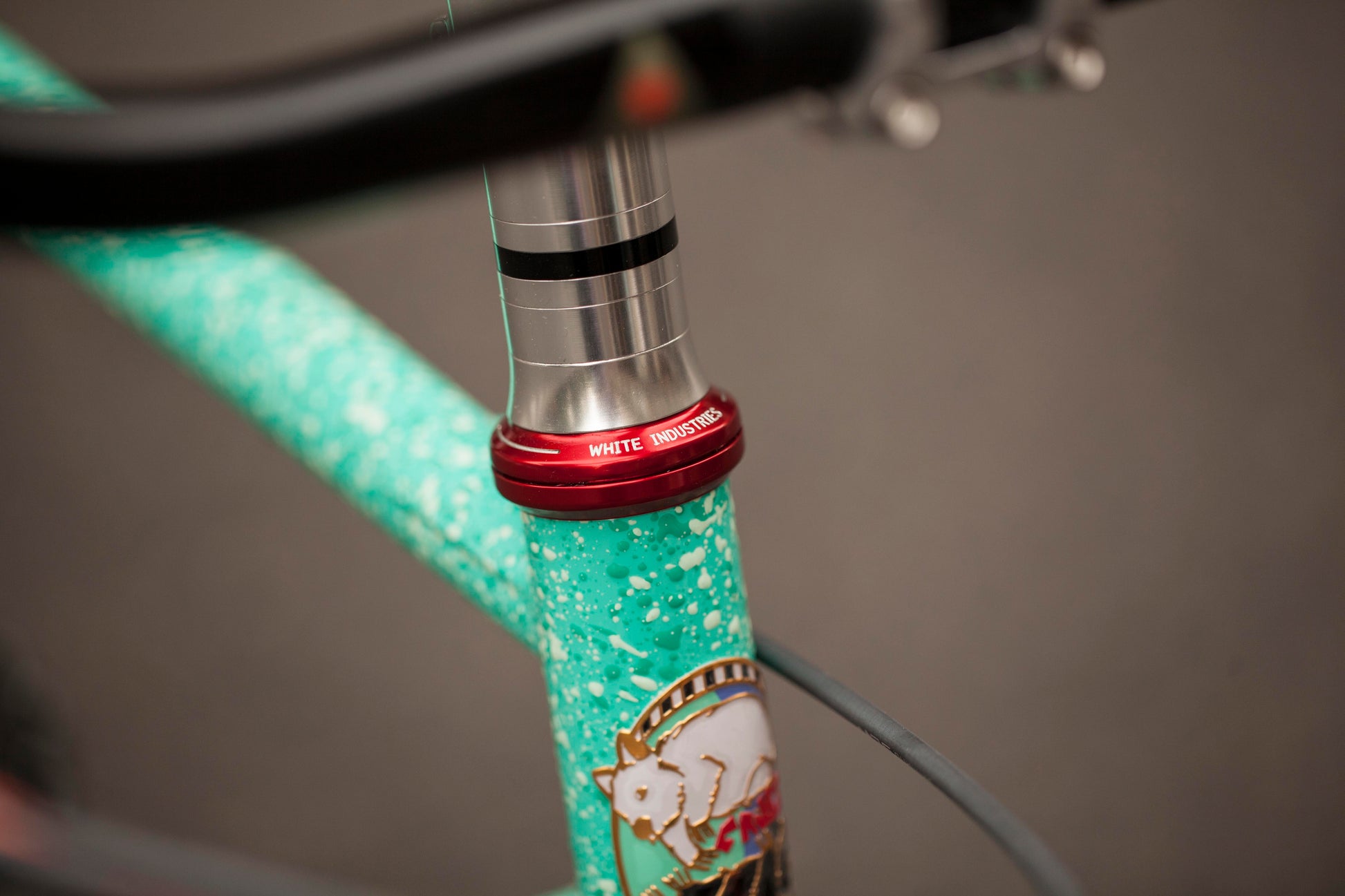

Head Tube Diameter: 1 1/8" (Threadless Steerer)
-
Bottom Bracket: 73mm English (BSA) Threaded
-
Seat Post Diameter: 27.2mm w/ Internal Dropper Routing
-
Fork Spacing: 9x100mm (QR/Bolt On Dropouts)
-
Rear End Spacing: 135mm w/ Vertical Dropouts and Replaceable Derailleur Hanger
-
Weight: Frame (Large 21") - 4lbs 15oz | Fork (Uncut Steerer) - 3lbs
Geometry:
Size | Extra Small | Small | Medium | Large | Extra Large |
---|---|---|---|---|---|
Top Tube Effective | 545mm | 565mm | 585mm | 600mm | 615mm |
Top Tube Center to Center | 520mm | 540mm | 564mm | 585mm | 606mm |
Slope | 18.7° | 14.1° | 9.5° | 6.1° | 3.5° |
Seat Tube Center to Top | 381mm | 432mm | 483mm | 533mm | 584mm |
Head Tube Angle | 69° | 69° | 69° | 69° | 69° |
Seat Tube Angle | 72° | 72° | 72° | 72° | 72° |
Head Tube Length | 86mm | 102mm | 114mm | 134mm | 159mm |
Chainstay Length | 431mm | 431mm | 431mm | 431mm | 431mm |
Bottom Bracket Height | 309mm | 309mm | 309mm | 309mm | 309mm |
Drop | 50mm | 50mm | 50mm | 50mm | 50mm |
Standover | 692mm | 735mm | 775mm | 817mm | 859mm |
Rake | 45° | 45° | 45° | 45° | 45° |
Trail | 89mm | 89mm | 89mm | 89mm | 89mm |
Wheelbase | 1032mm | 1053mm | 1074mm | 1090mm | 1106mm |
