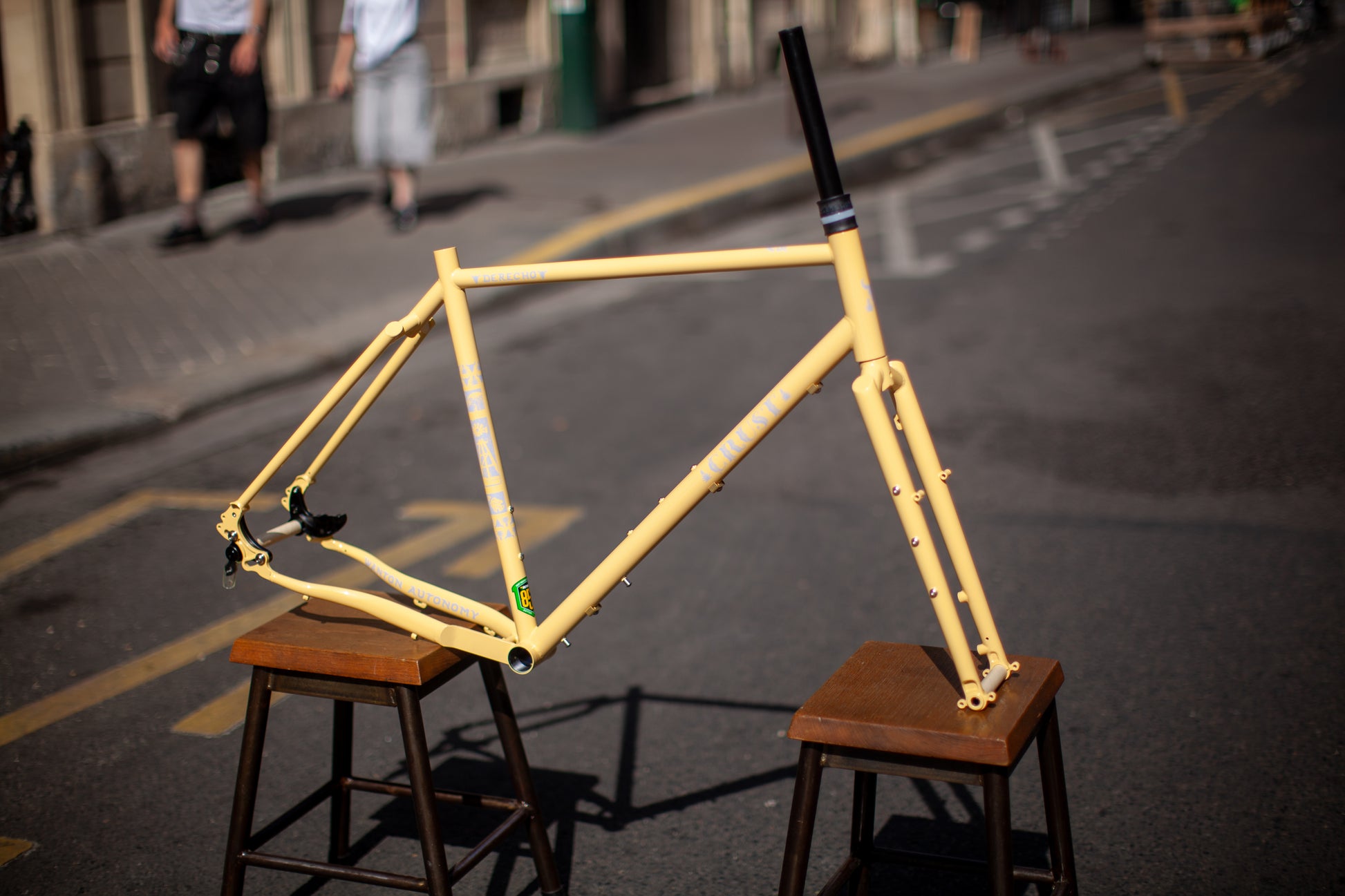

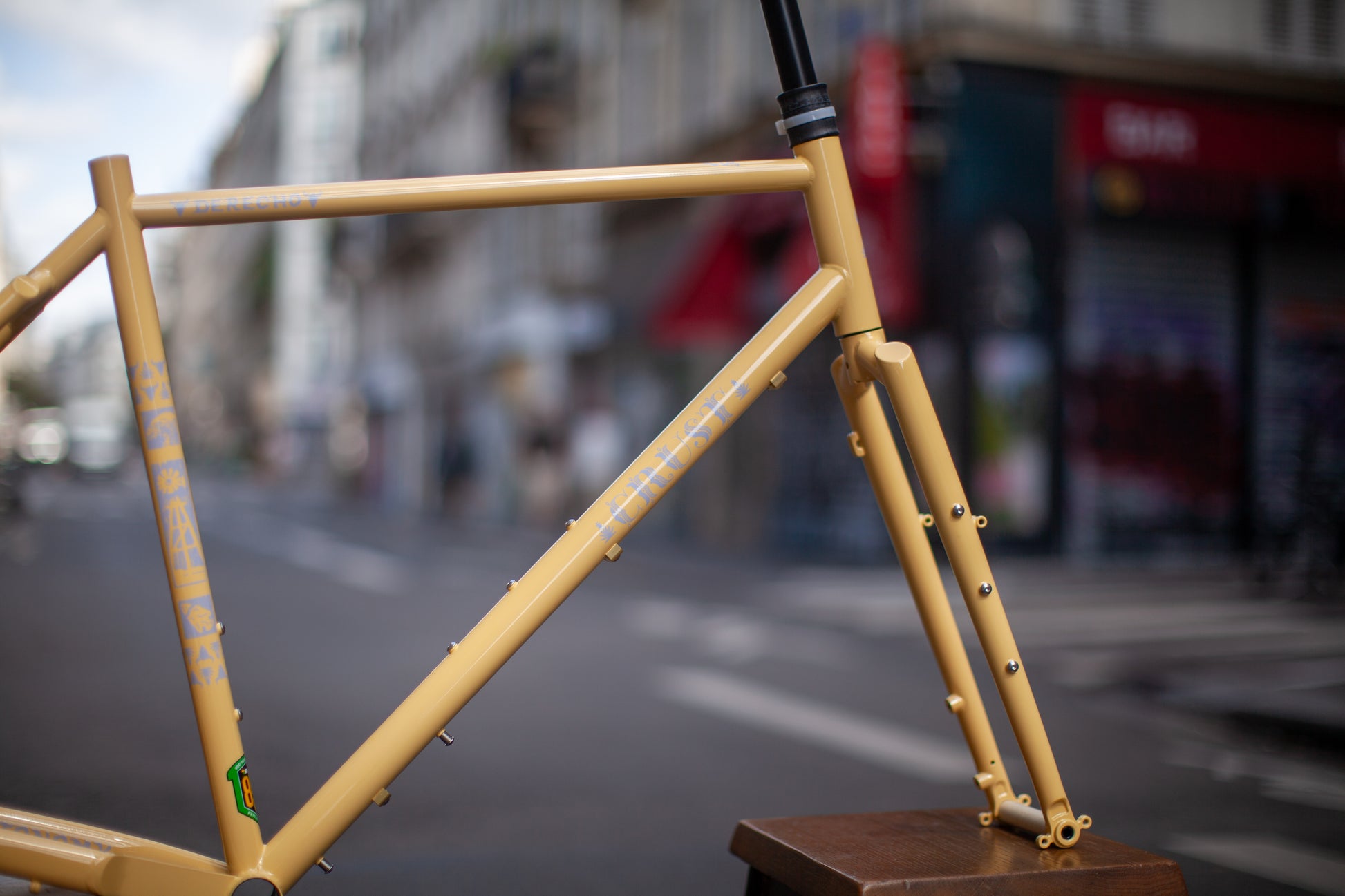

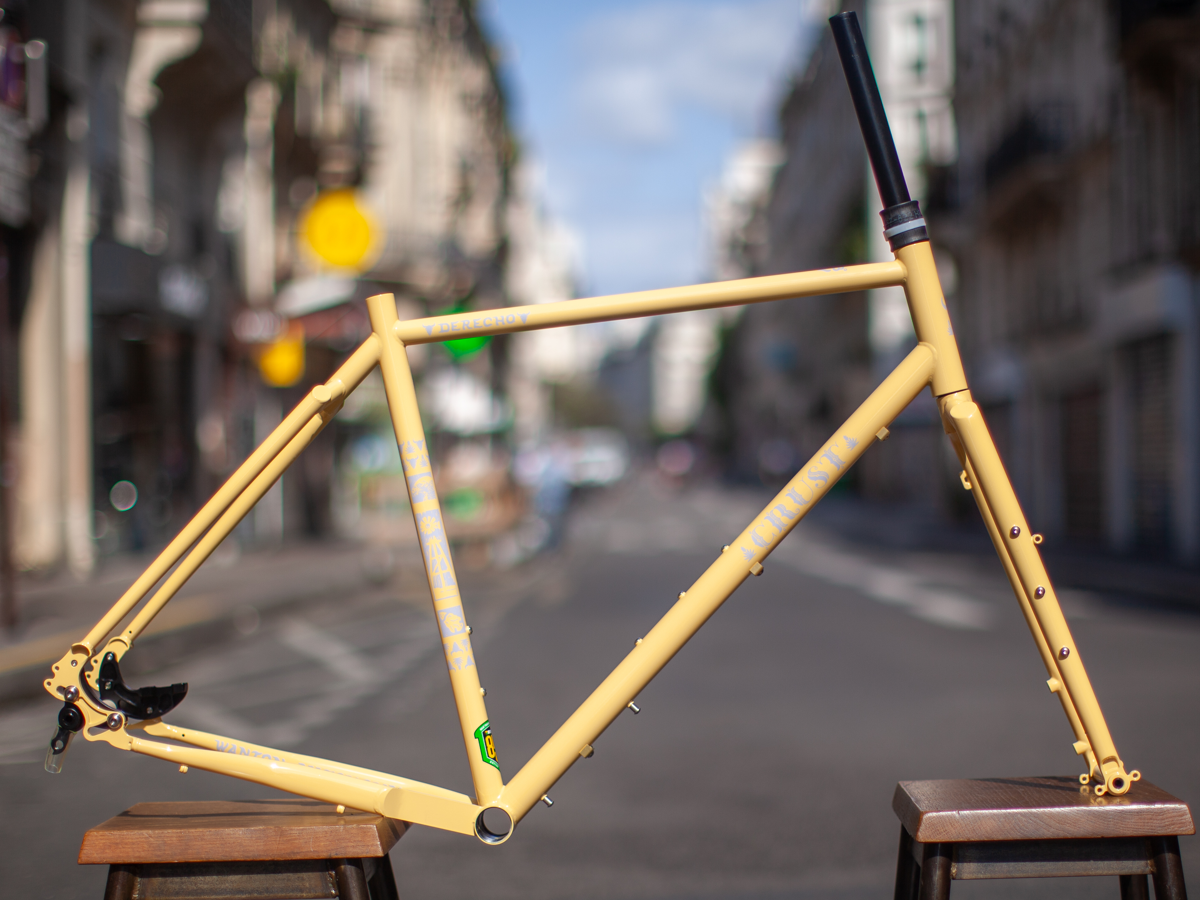

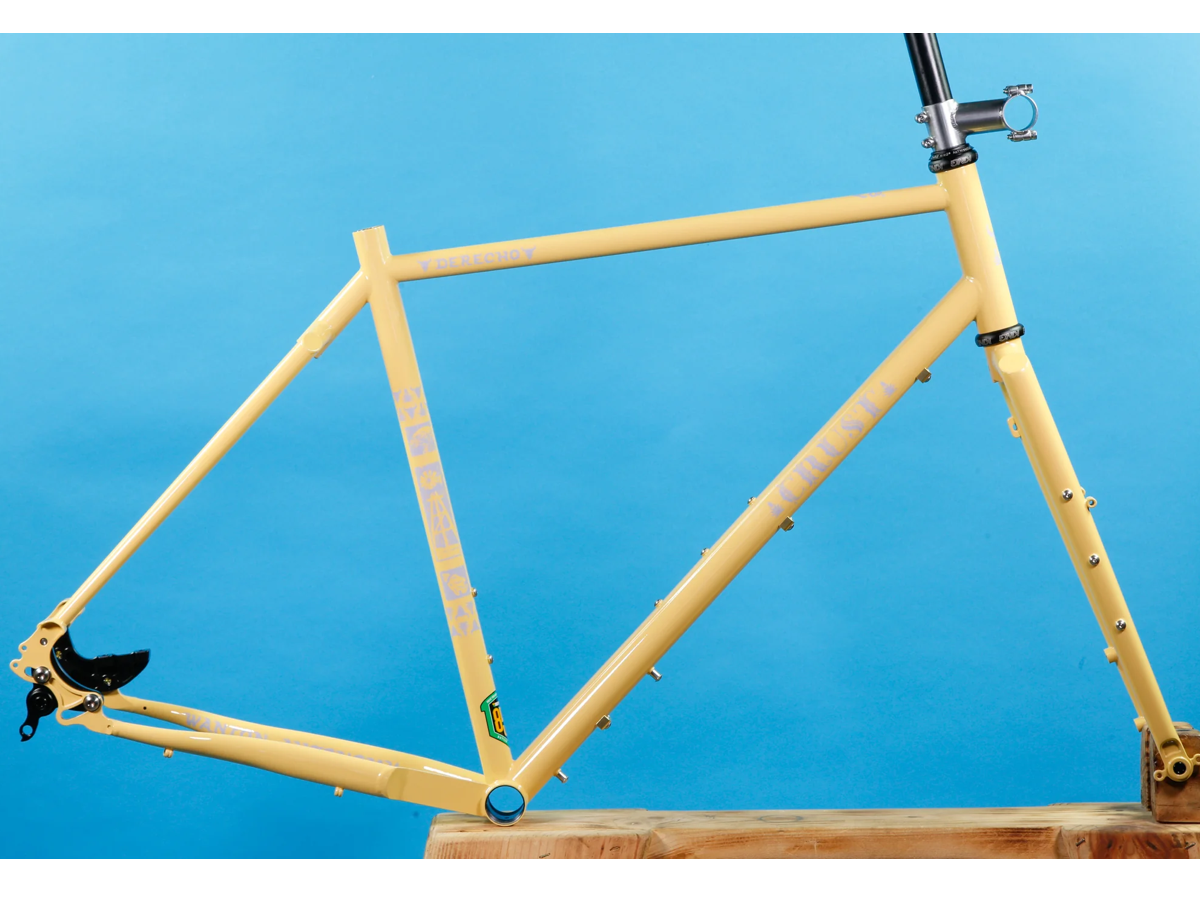

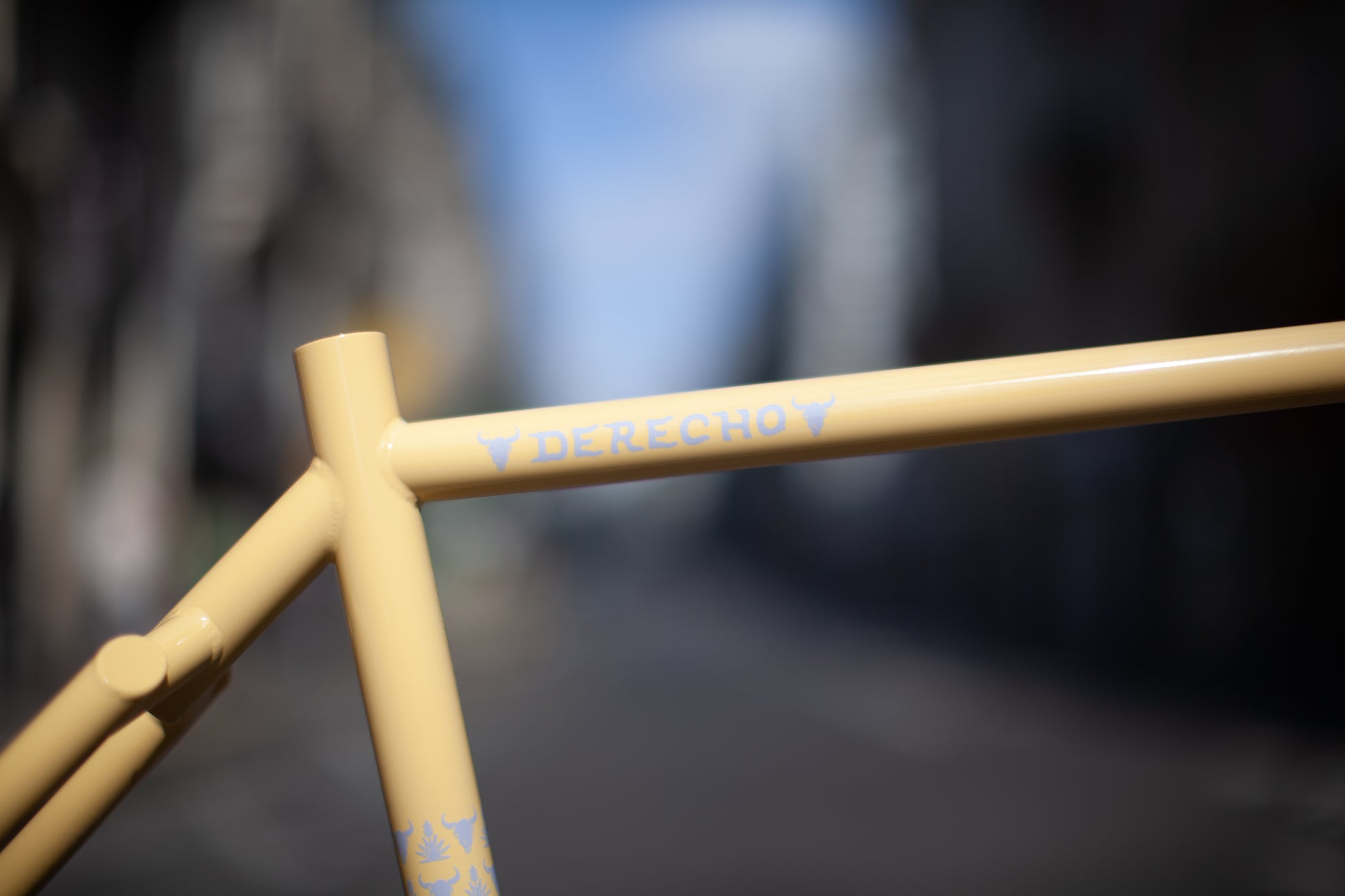

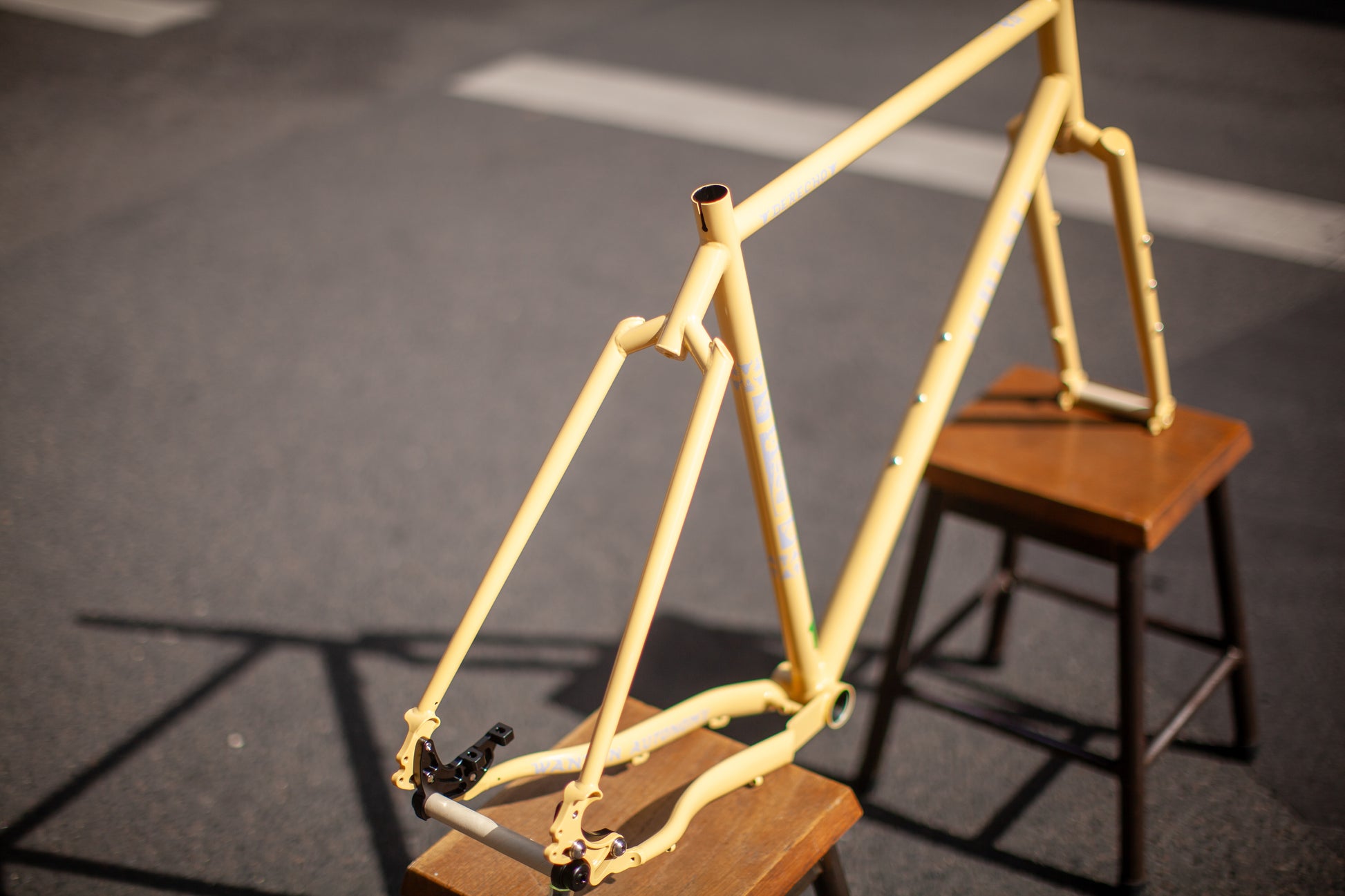

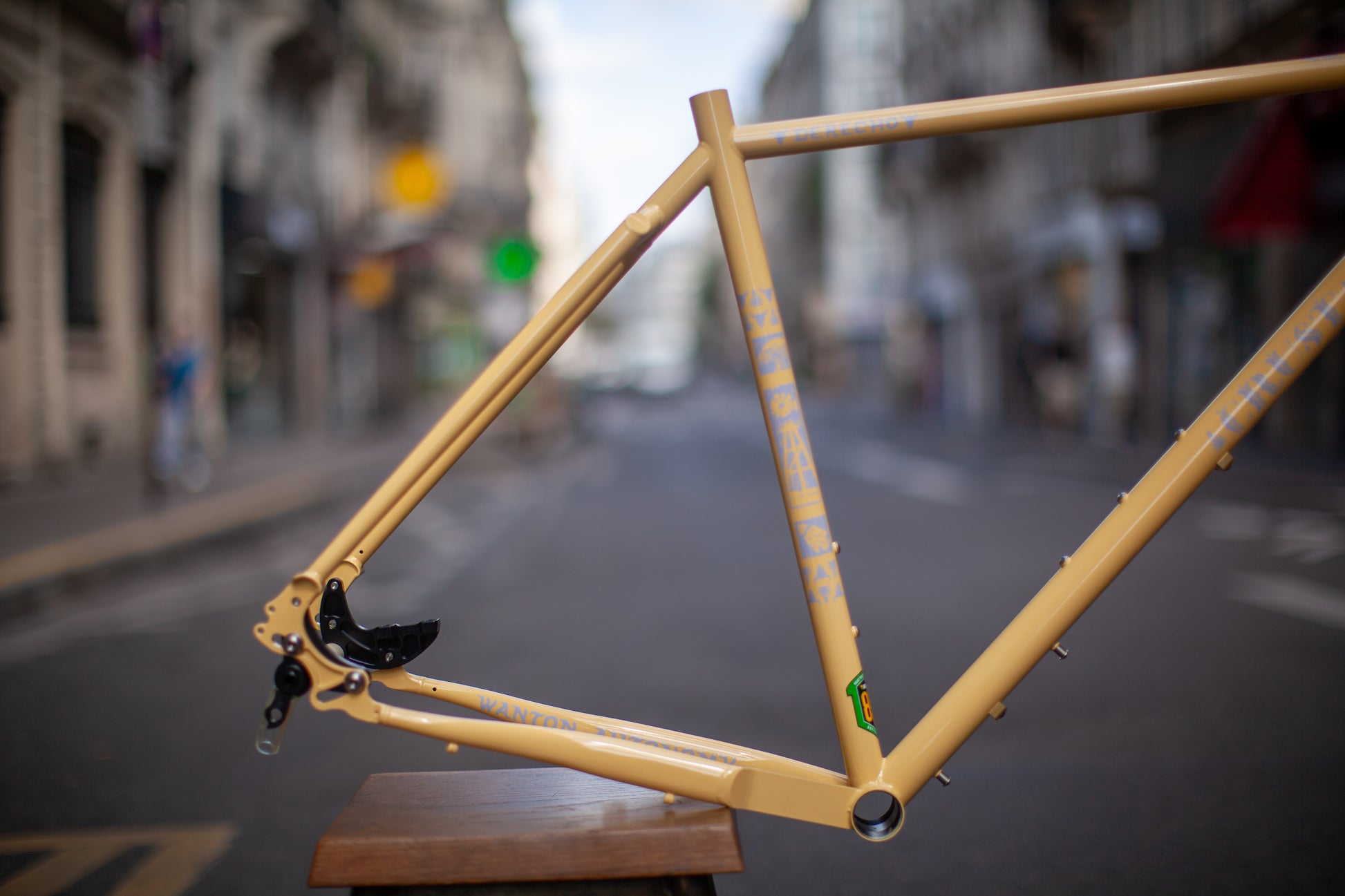

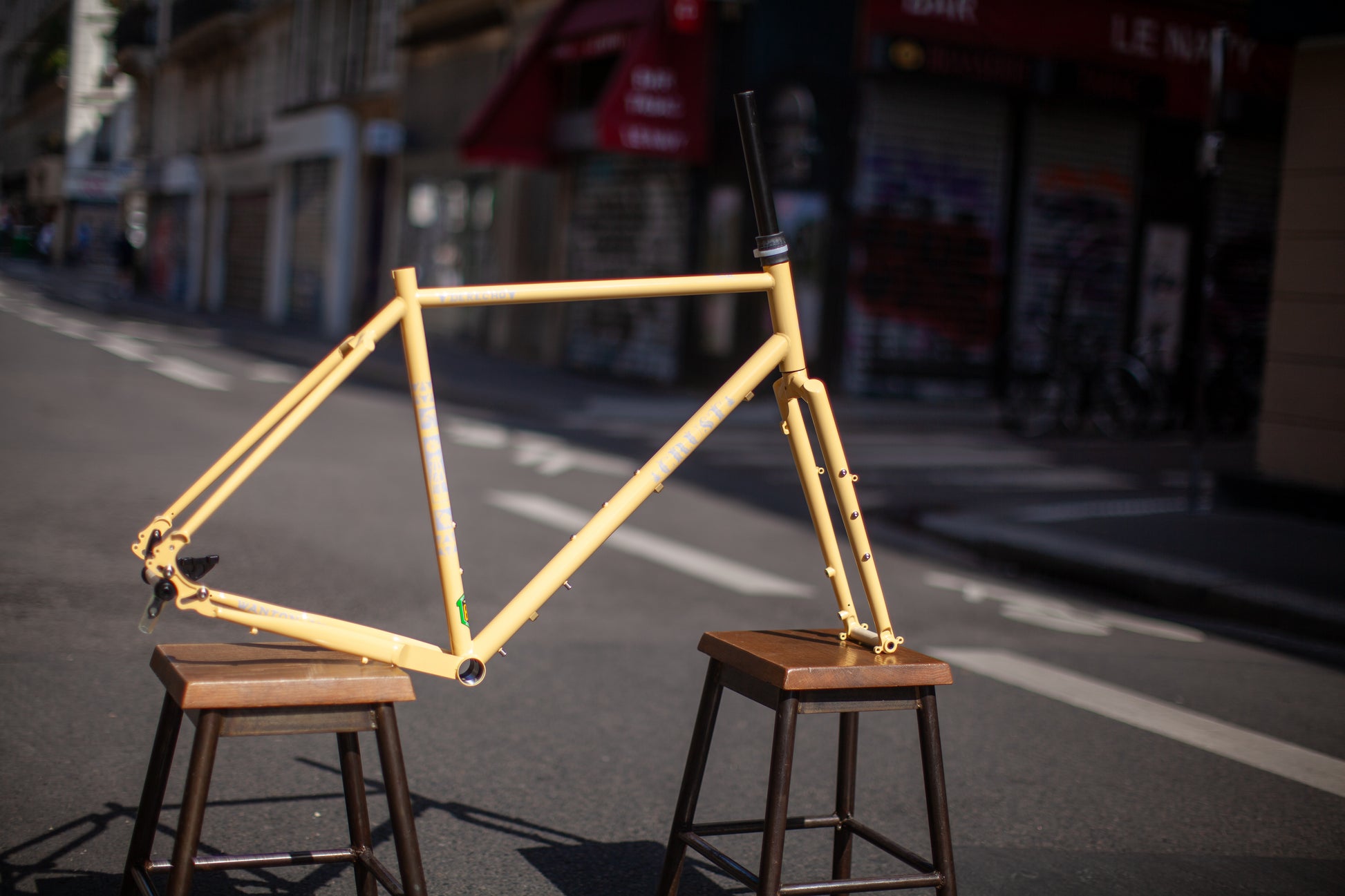

CRUST DERECHO FRAME

The Crust Derecho is Anton Krupicka's signature bike, designed to blend the best features from the Bombora, Evasion, and Evasion Lite into one powerful and versatile frame. Built for riders who want to climb with ease and bomb down mountain double tracks, the Derecho is a true all-rounder. Featuring a Reynolds 853 tubeset with an oversized downtube for added strength and stiffness, this bike is a joy to ride, especially when you're out of the saddle. If you're looking for a frame that can handle both uphill climbs and rugged descents, this is the one.

Build Notes:

• Tire Compatibility: Designed to fit up to a 29x2.5" tire, but works great with 27.5x2.6" or even experimental 26" tires.

• Crank Compatibility: Takes a ROAD crank, ideally 1x with a max 40t chainring (2x setup is also possible).

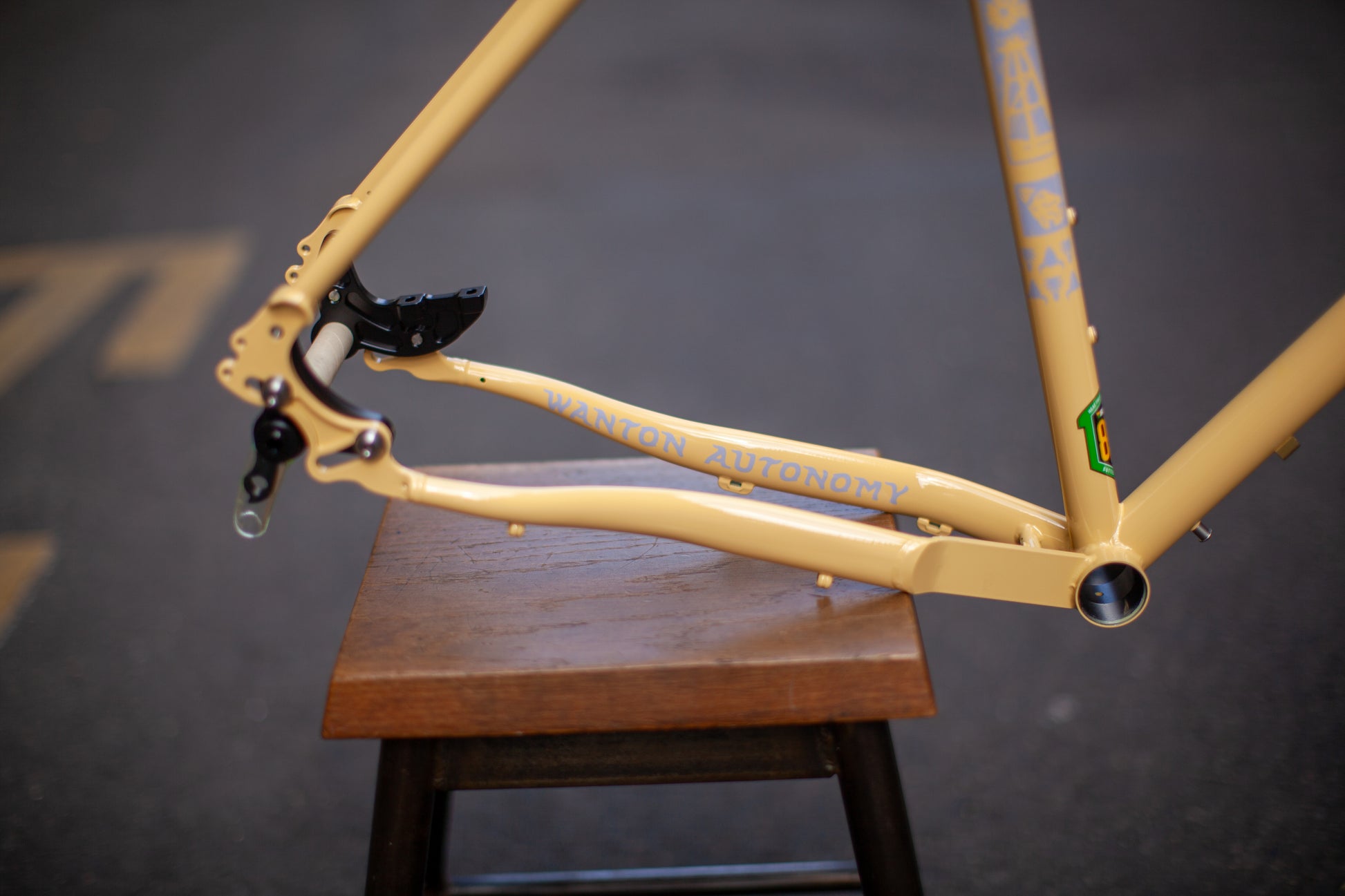

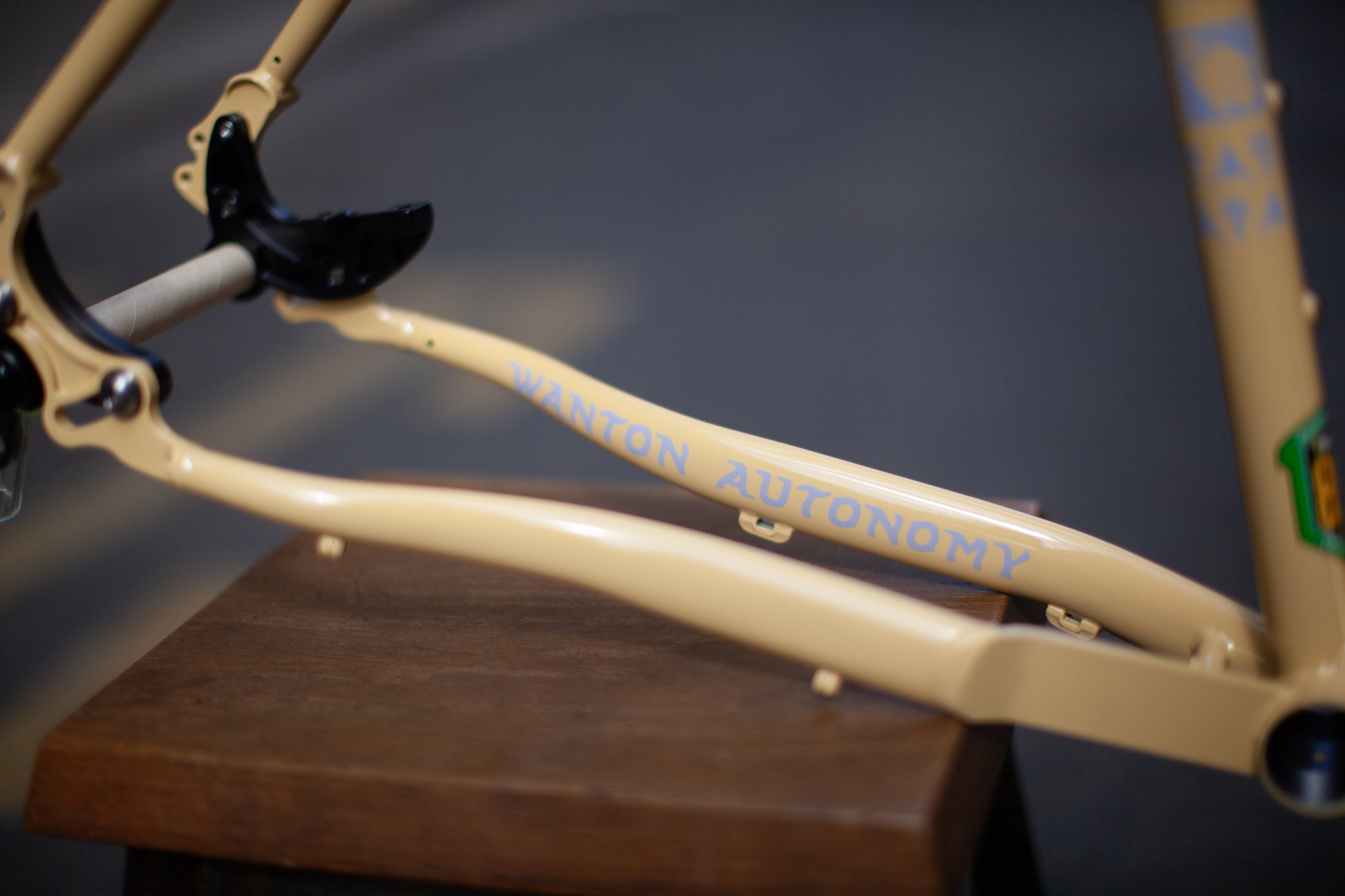

• Dropouts: The rocker dropouts are adjustable, making it compatible with single speed setups or Rohloff hubs.

• Brake Compatibility: Flat mount brakes for both front and rear. Recommended rear caliper bolt length is around 17mm.

• Rotor Size: Max rotor size of 203mm for the front and 180mm for the rear.

• Thru Axles: Front and rear thru axles are included.

Key Features:

• Versatile Design: Handles a wide range of tire sizes from 29x2.5" to 26" tires, perfect for all terrains.

• Stiff and Responsive: Oversized downtube and Reynolds 853 tubing provide excellent climbing and descending performance.

• Brake Compatibility: Flat mount brake calipers front and rear with plenty of rotor clearance.

• Adjustable Dropouts: Perfect for single-speed setups or internal gear hubs like the Rohloff.

• ED Coated: Coated to protect against corrosion, ensuring your bike stays in top shape.

Ideal For:

• Climbers who want a bike that can handle both steep ascents and rapid descents.

• Riders looking for a versatile frame for off-road adventures, bikepacking, or general trail riding.

• Those who prefer a lightweight, stiff, and responsive ride for mountain double tracks or gravel roads.

Specifications:

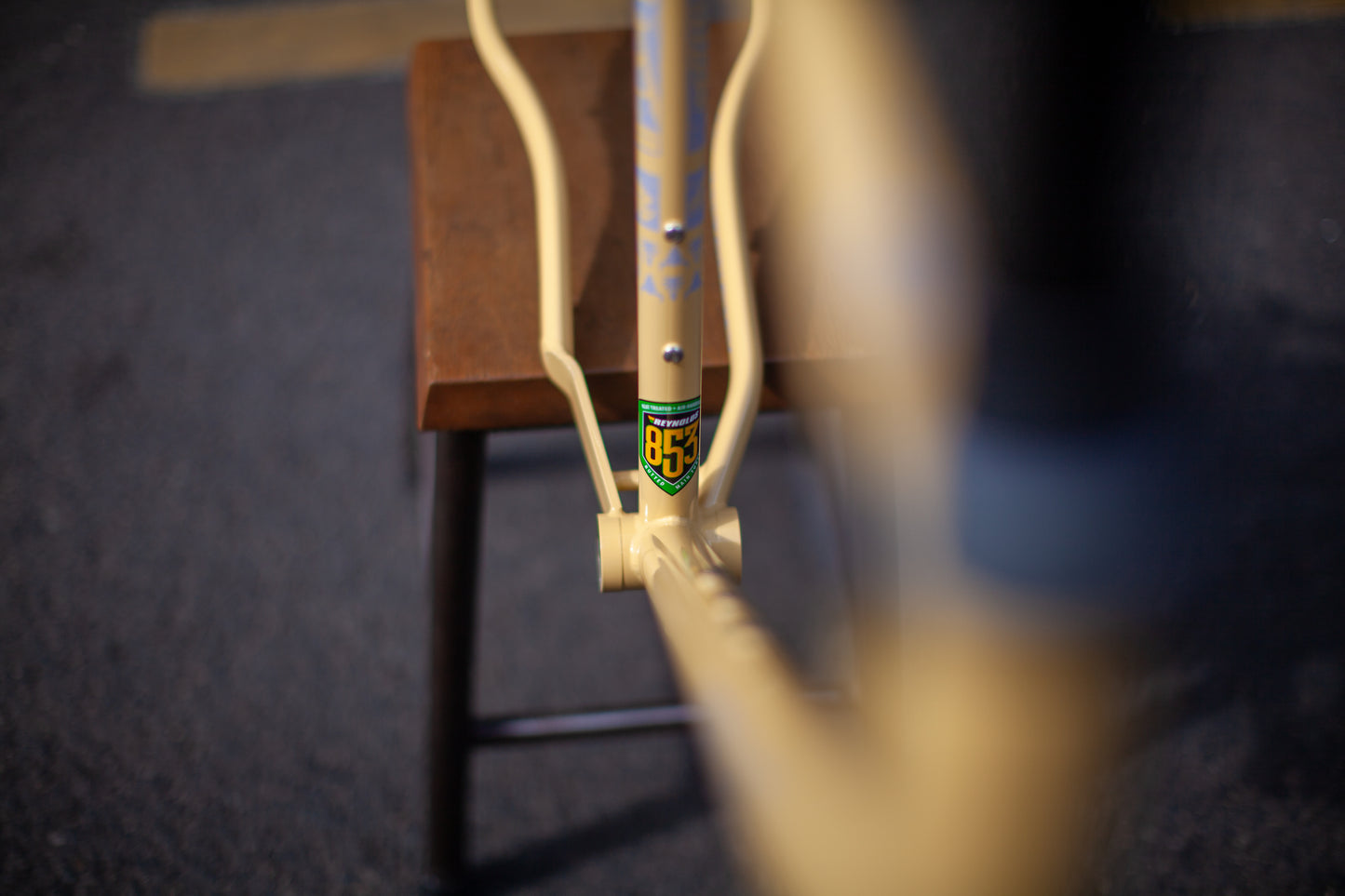

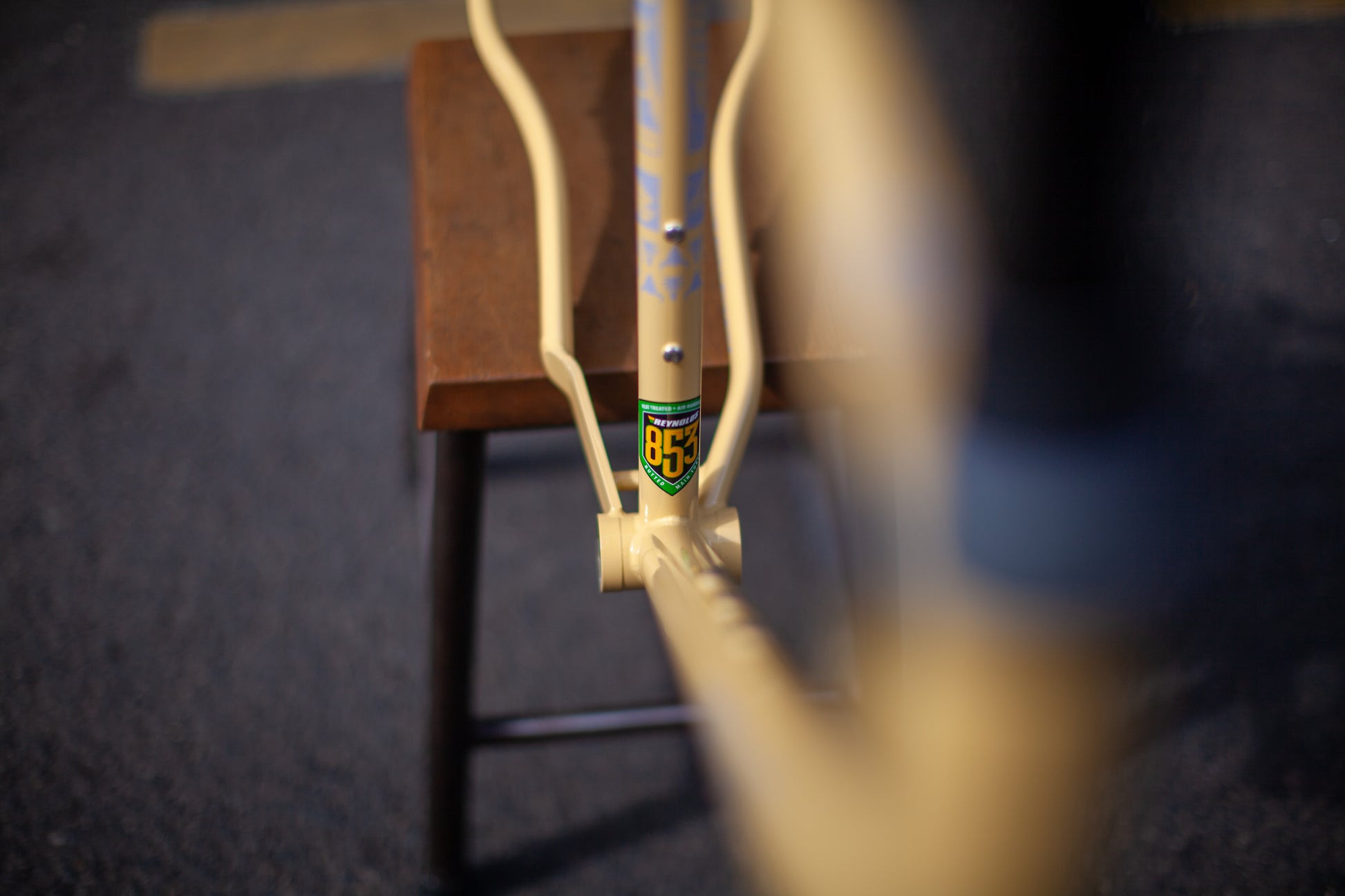

• Material: Handmade in Taiwan using Reynolds 853 Tubing

• Colors: Pale Yellow | Forest Green

• Sizes: Medium (56cm), Large (58cm), Extra Large (60cm)

• Head Tube Diameter: 1 1/8" (Threadless Steerer)

• Bottom Bracket: 68mm English (BSA) Threaded

• Fork Spacing: 12x100mm

• Rear End Spacing: 12x142mm

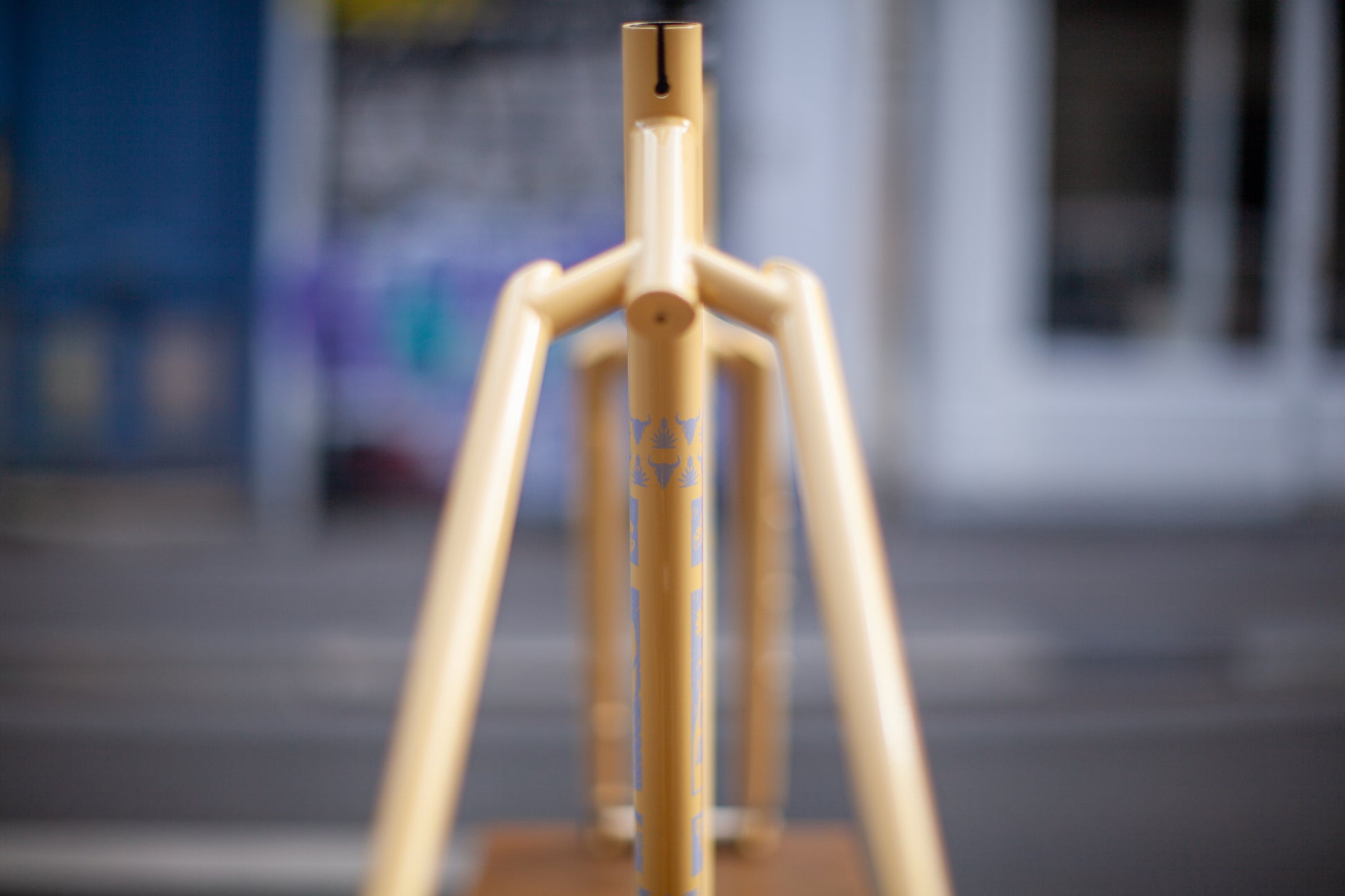

• Seat Post Diameter: 27.2mm

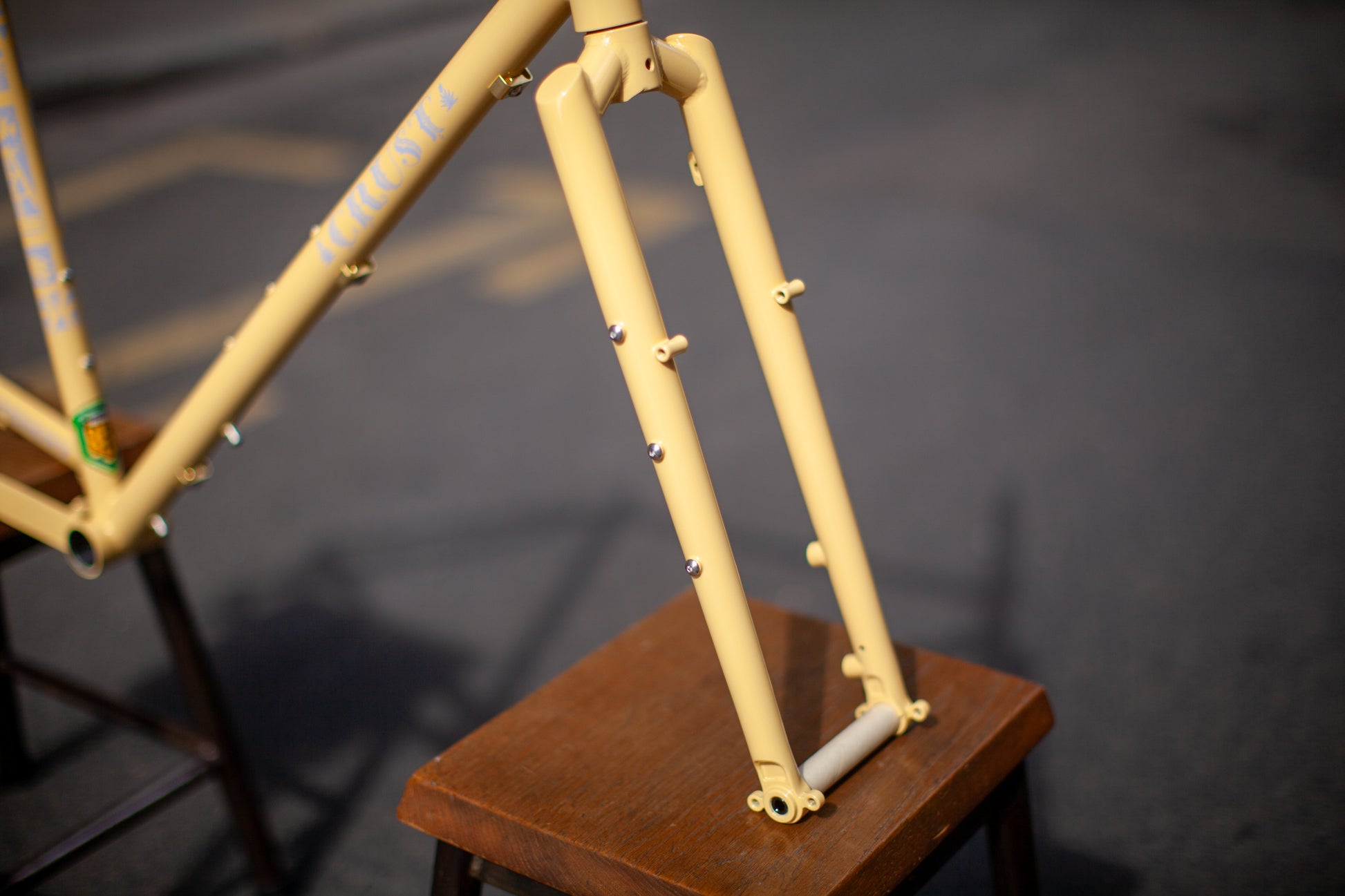

• Weight: Frame (Large 58cm) - 2.52kg (5lbs 9oz) | Fork - 1.4kg (3lbs 1oz)

Geometry:
