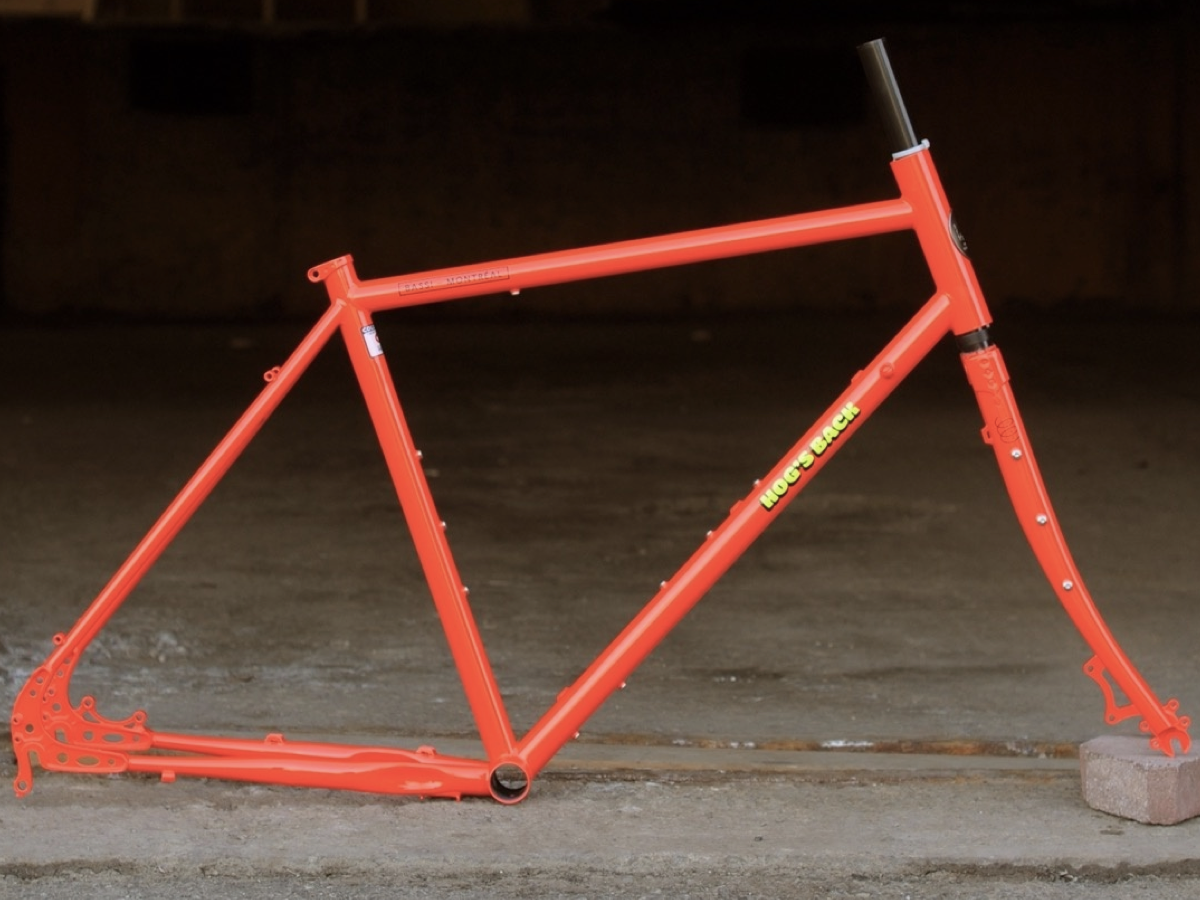

BASSI HOG'S BACK FRAME - COOL ADE
BASSI HOG'S BACK FRAME - COOL ADE
  • Load image into Gallery viewer, BASSI HOG'S BACK FRAME - COOL ADE
  • Load image into Gallery viewer, BASSI HOG'S BACK FRAME - COOL ADE

BASSI HOG'S BACK FRAME - COOL ADE

Regular price
€1.125,00
Sale price
€1.125,00
Regular price
Sold out
Unit price
per
Tax included.

From Bassi:

The Hog's Back is the true all-road loaded touring frame from Bassi.  This bike has ridden all over, from Montréal's streets to Vermont's highways to Peru's dirt roads, and now to French roads as loaded-down with baggage as you please.

Features:

  • Columbus Cromor tubing (frame and fork)
  • Geometry optimized for balanced front-rear load, or front-biased load.
  • Ideally used with swept-back bars rather than road drops. If using drops, you'll need a short stem and/or a frame one size smaller, this bike has a long front to it.
  • 27.2mm seatpost, cast seat collar
  • EC34 headset (1-1/8" standard)
  • 28.6mm theadless steerer
  • Disc brake ISO mounts, 160mm rotor recommended
  • Downtube mounts for shift levers or housing stops
  • 135mm rear spacing, quick-release vertical dropout
  • BSC threaded bottom bracket (1.37" x 24TPI), 68mm shell width
  • Includes cable guide for shift cables under the BB shell
  • Kickstand plate
  • Frome Bassi : Pretty darned rugged weight limits, as far as luggage on a properly installed rack goes. We tested with 26kg of weights in panniers, up and down steep hills, and handling didn't change much, so you're probably good. But be reasonable.
  • So many eyelets! Put racks, cages, fenders, whatever you want on this bike.
  • Metal headbadge. It doesn't change anything but boy is it pretty and really classes up the place.

FRAME GEOMETRY:

SIZE

47cm

51cm

54cm

58cm

Seat tube (c-t)

470

510

540

580

Effective top tube

530

560

590

630

Head tube angle

70.5

71

72

72

Seat tube angle

73

73

73

73

Chainstay

440

440

440

440

Headtube

130

170

150

190

BB drop

40

40

60

60

Stack

519

559

583

621

Reach

371

389

412

440

Wheelbase

1032

1059

1070

1111

Rake

50

50

50

50

Tire clearance

26x2.2" or 650Bx47

26x2.2" or 650Bx47

27.5x2.2" or 700Cx45

27.5x2.2" or 700Cx45

Frame Geometry and Specs from Bassi: Bassi Hog's Back
