RIVENDELL PLATYPUS FRAME
RIVENDELL PLATYPUS FRAME
Couldn't load pickup availability
As these frames come in quite odd boxes, shipping prices vary quite a bit depending on where they're headed, so it is not included in the price. If you need shipping, please contact us!

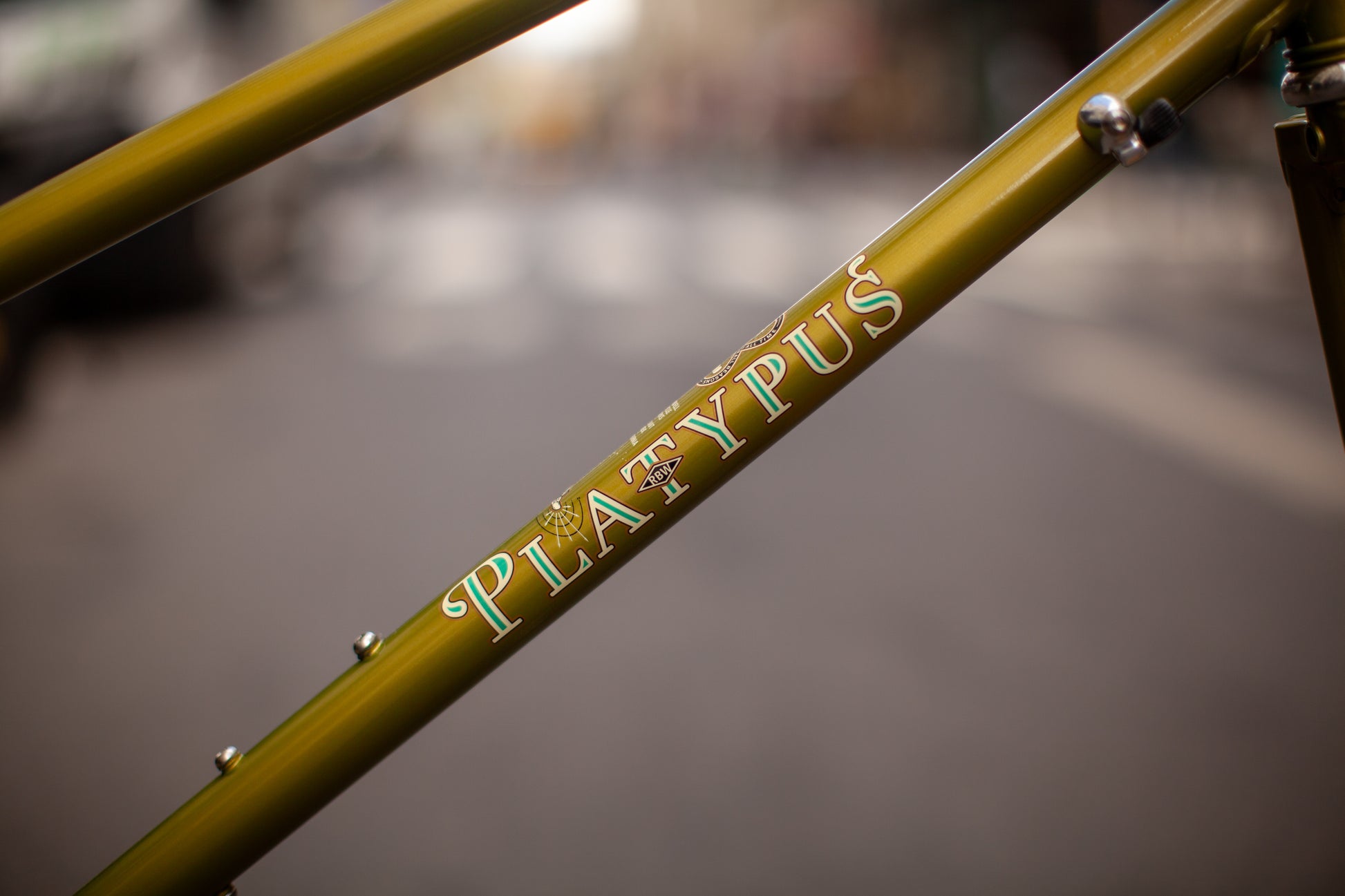

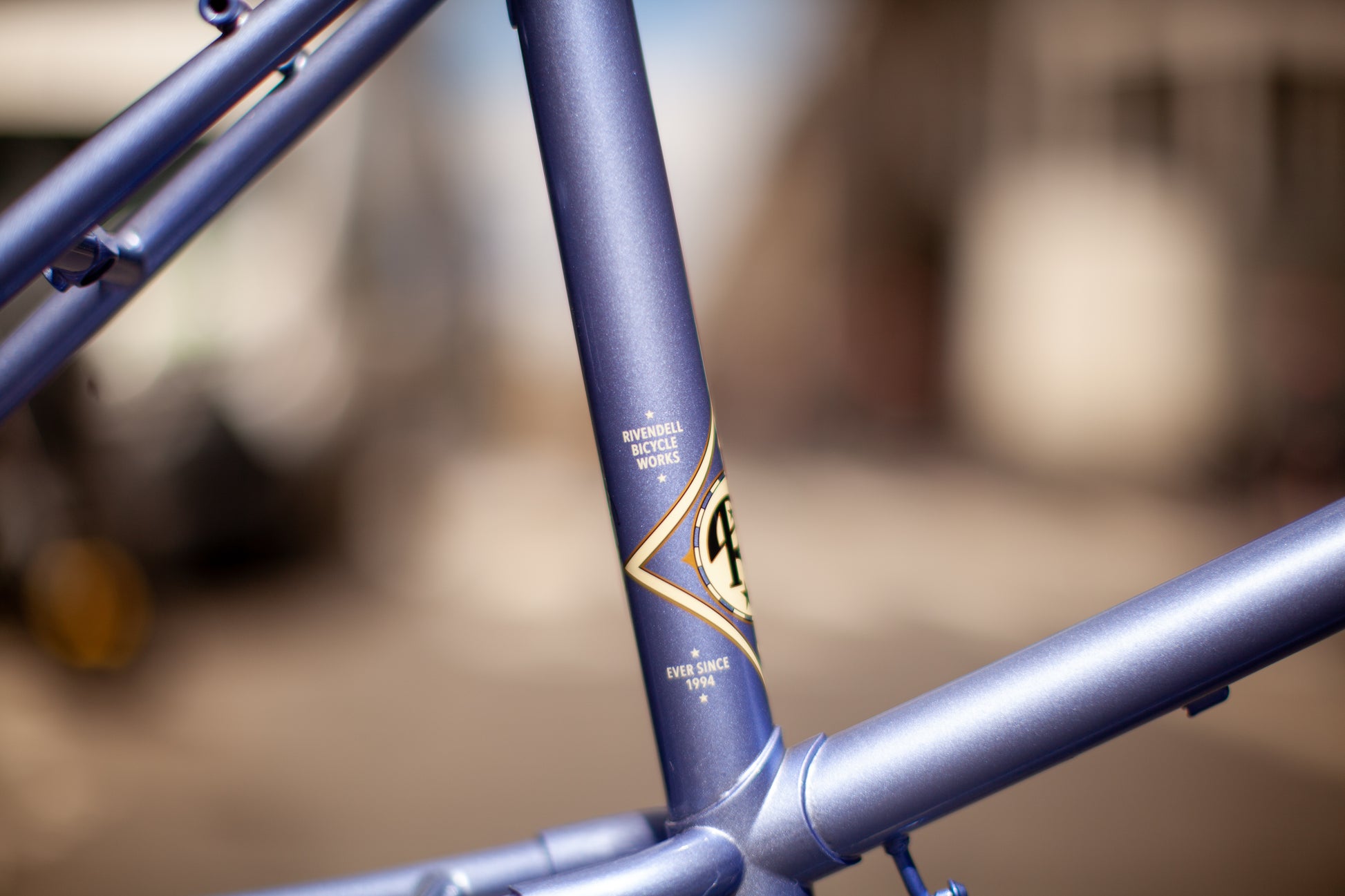

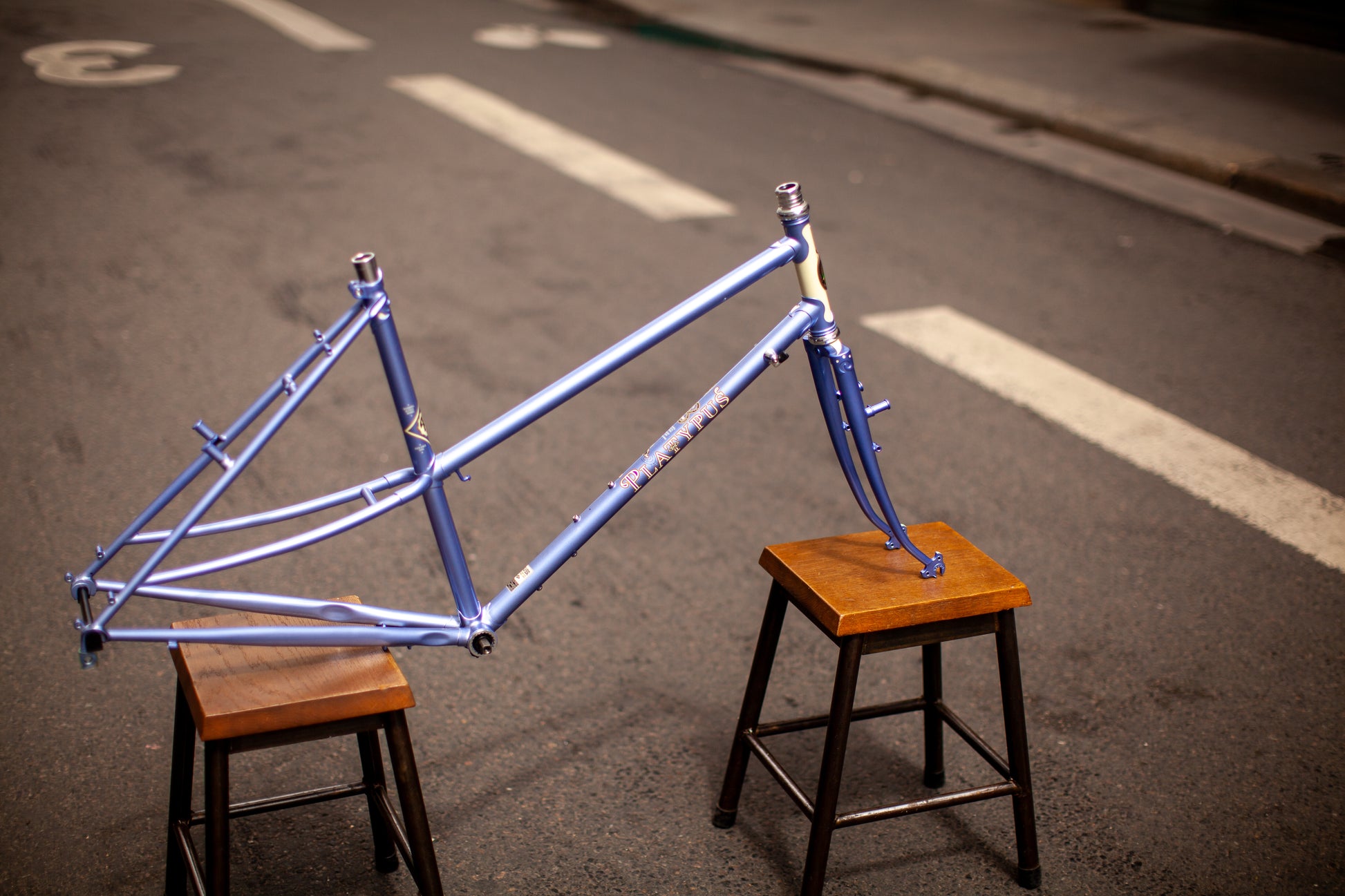

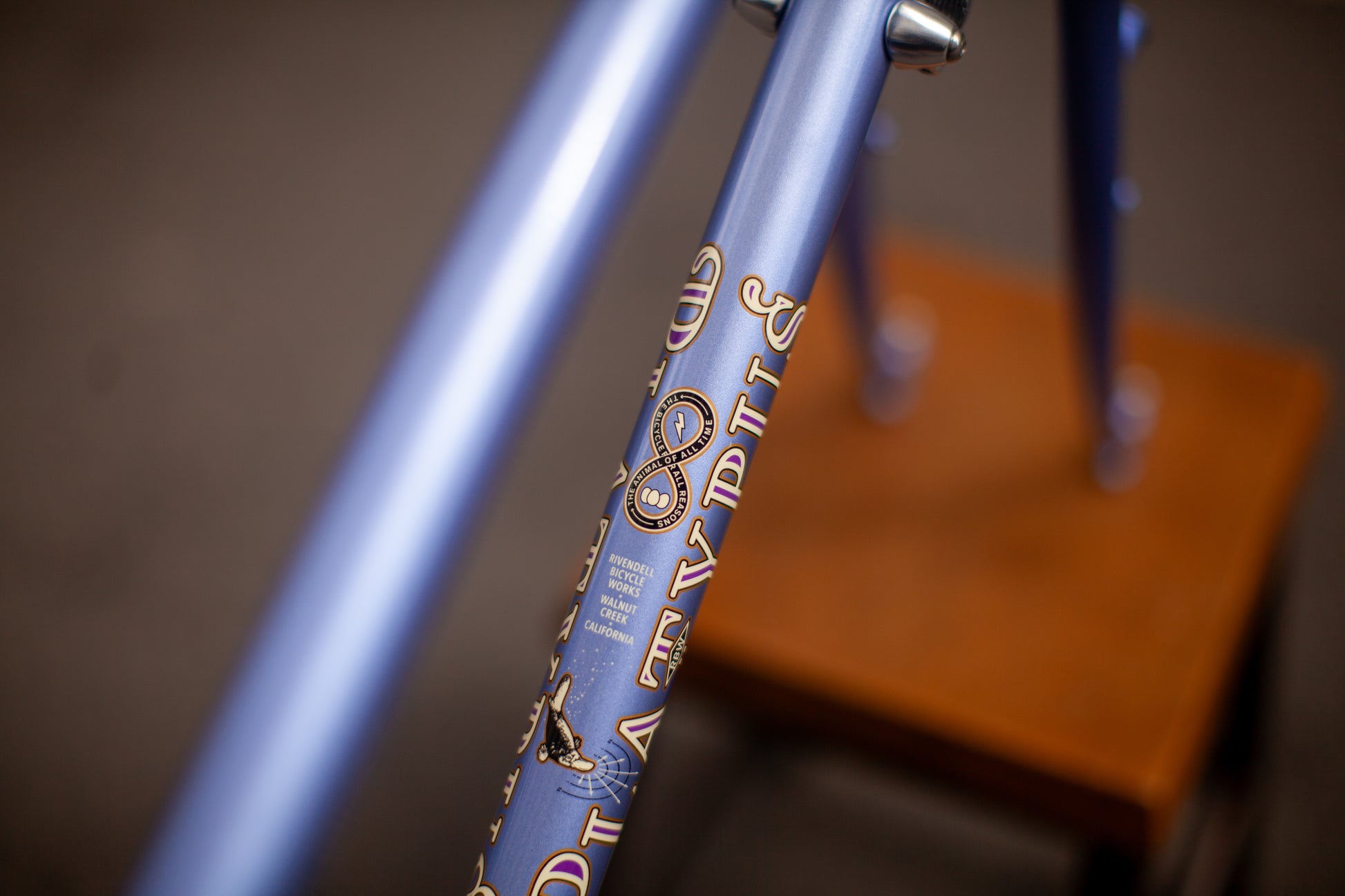

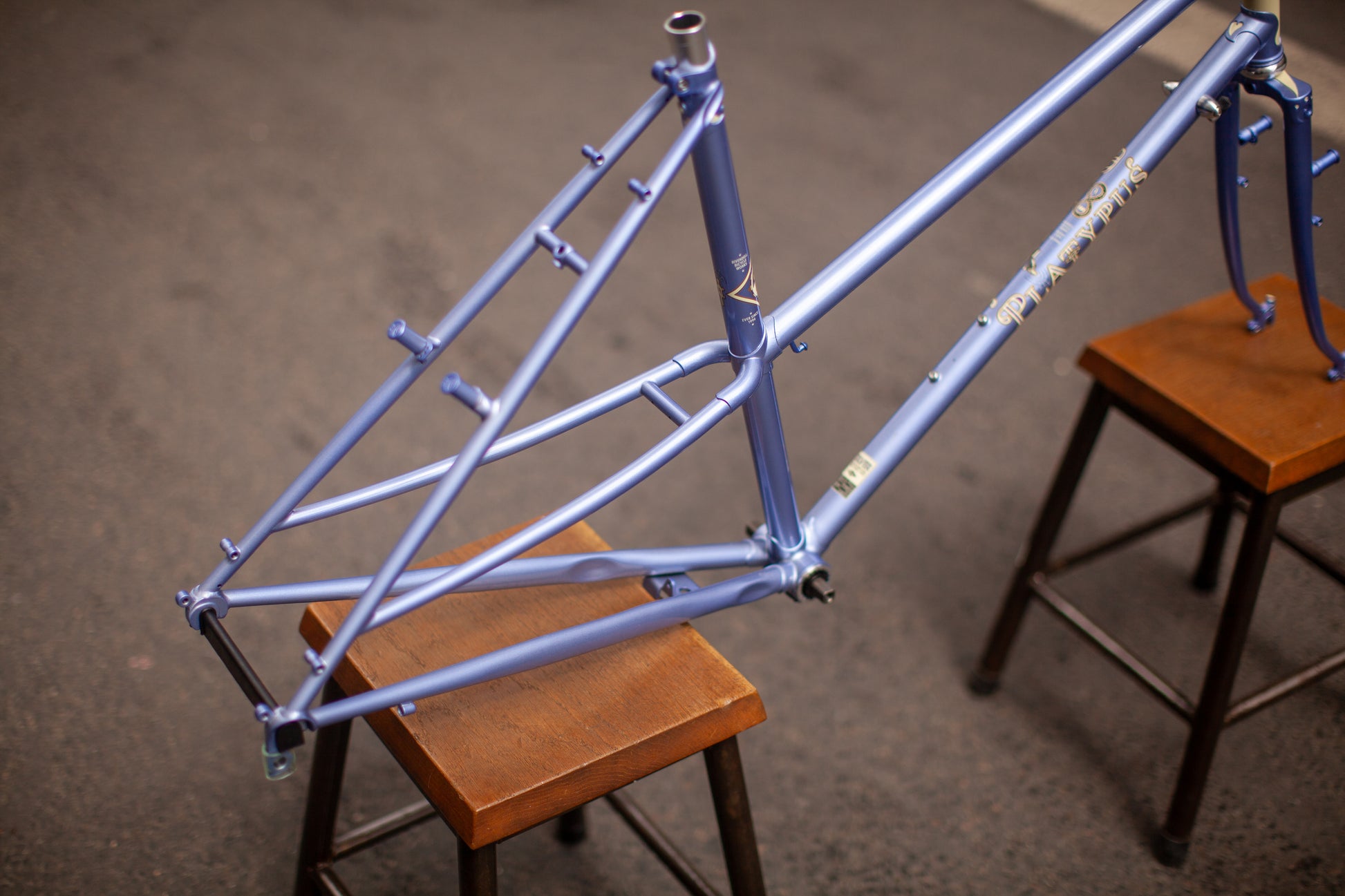

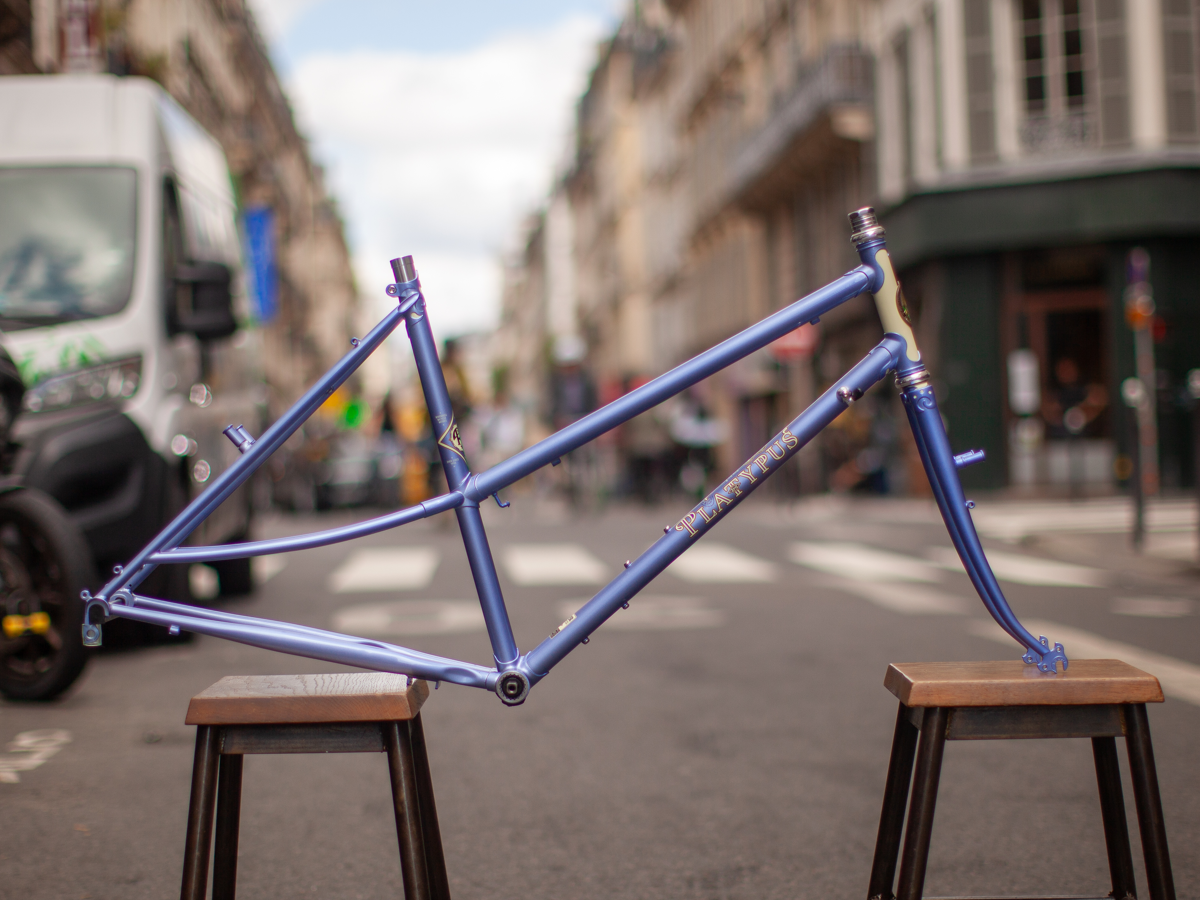

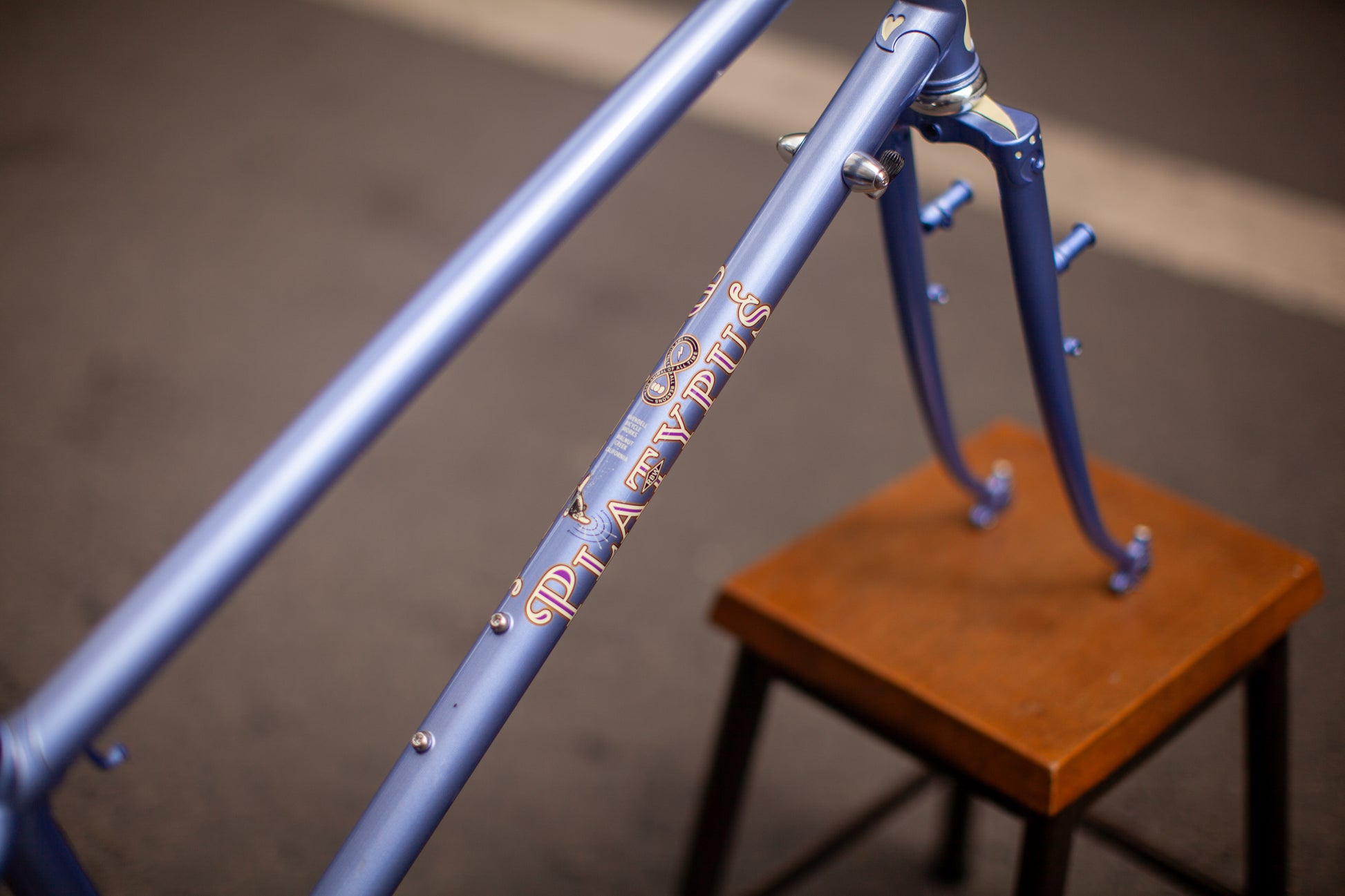

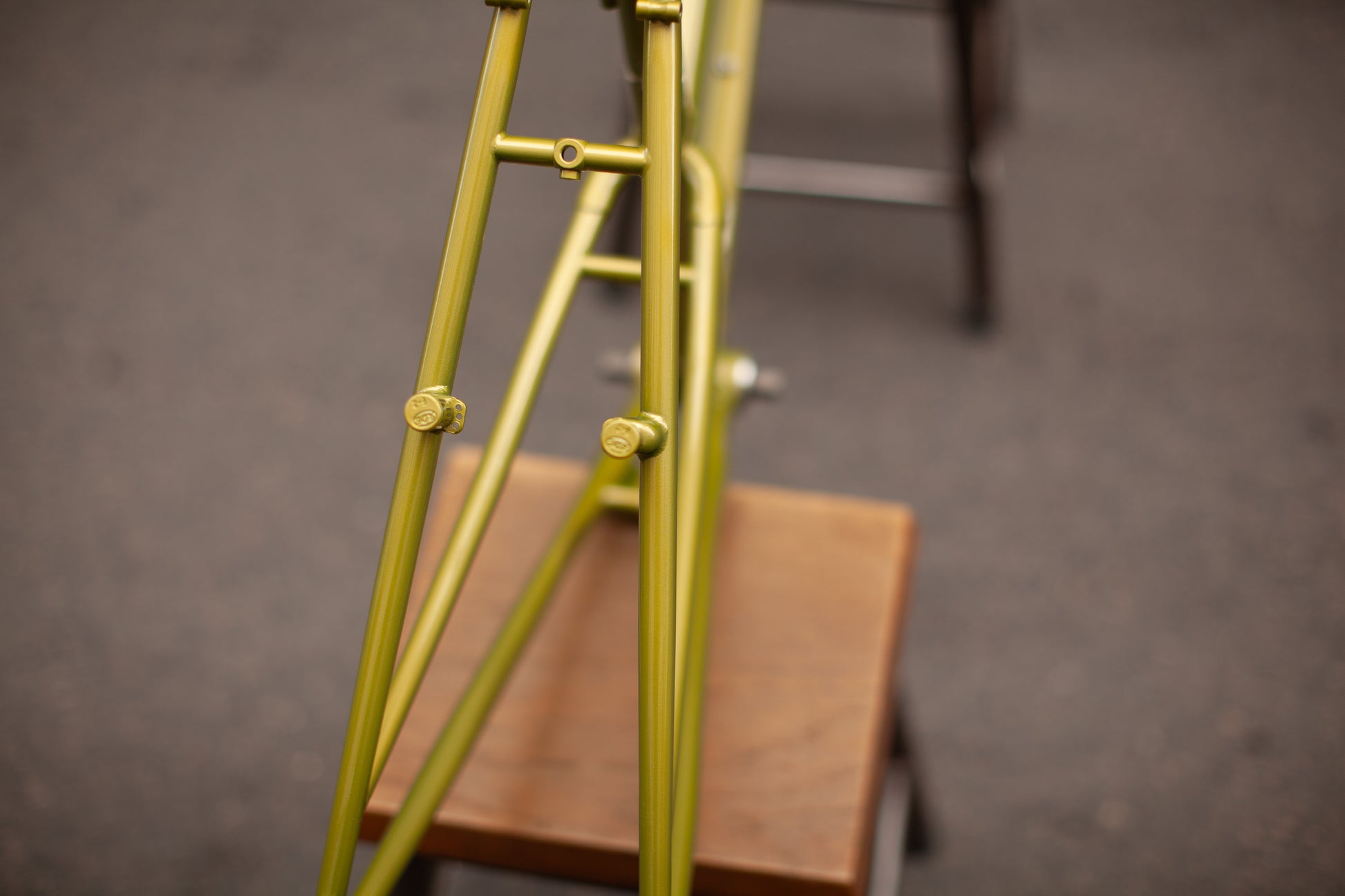

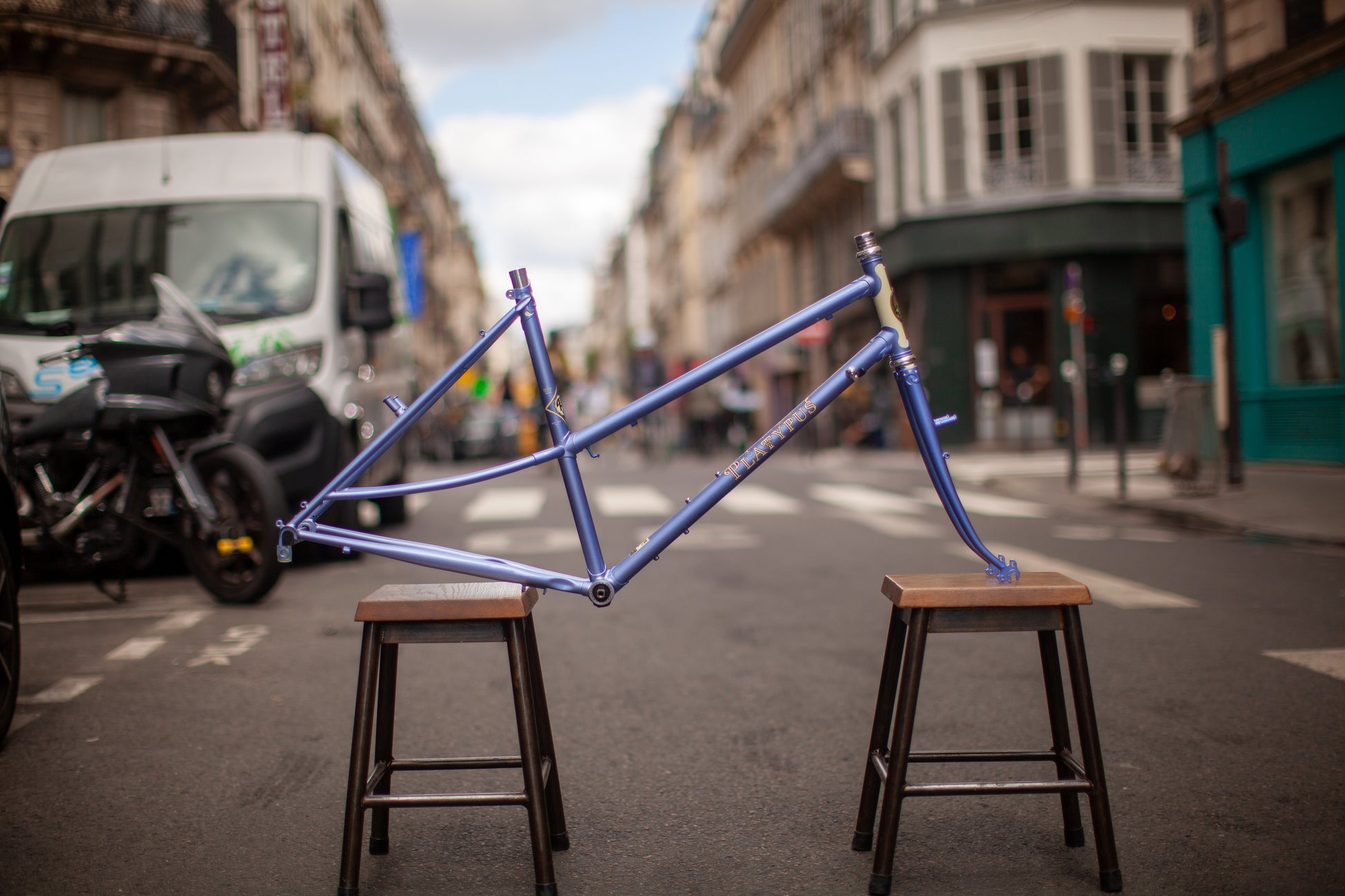

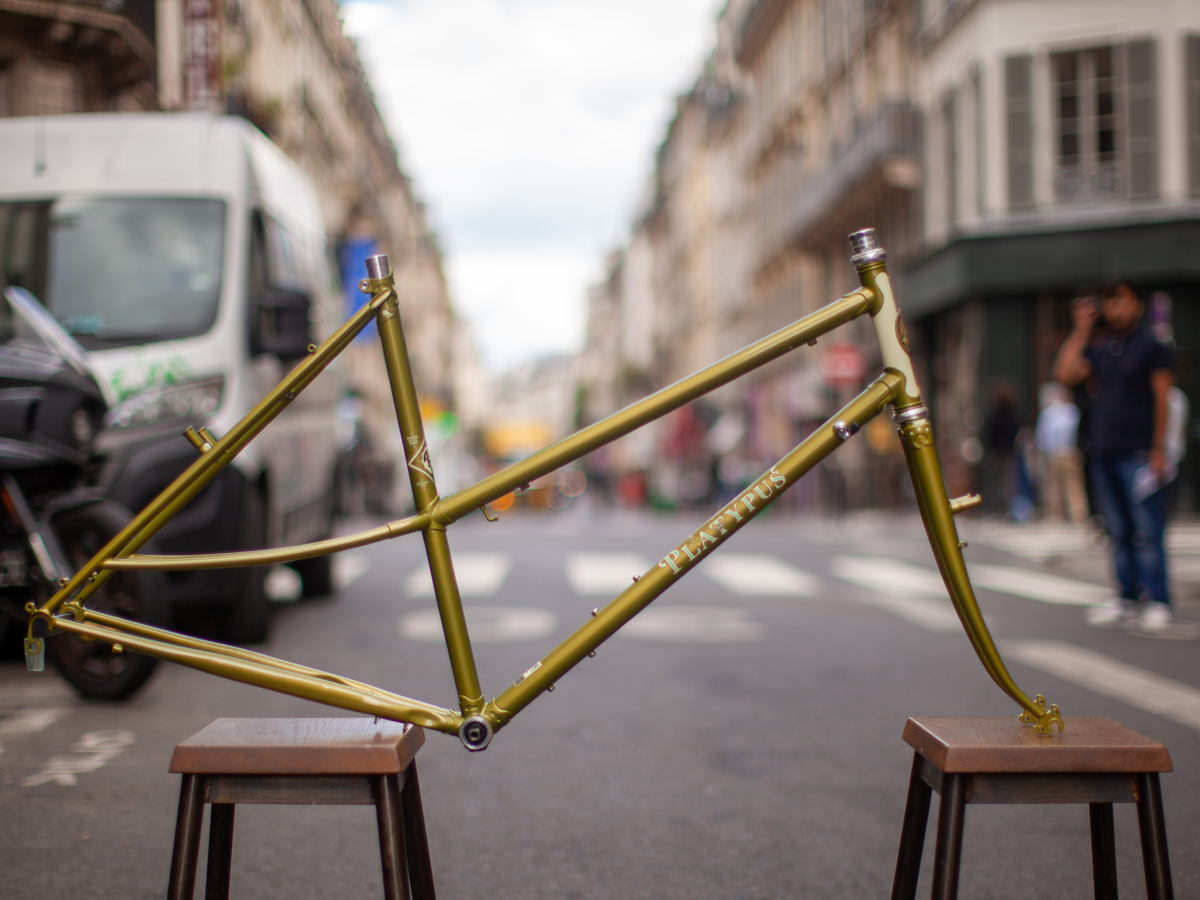

The Rivendell Platypus Frame is a versatile, all-around bicycle frame designed to meet a variety of riding needs. Whether you're commuting, bikepacking, or enjoying a fitness ride, this frame offers the perfect balance of comfort, durability, and style. It’s ideal for loaded or unloaded touring, day trips, and even fitness-fast rides. While it's not a dedicated mountain bike, it’s capable of handling fire trails if you're a rider with good judgment and skill.
This frame is perfect for cyclists who want a bike that’s reliable on a wide range of surfaces, including gravel roads. It features a maximum tire clearance of 50mm, giving you the option to run larger tires for enhanced comfort and control. The Platypus Frame isn't just functional—it's a great looking frame that doesn't sacrifice performance for beauty.
Key Features:
-
Versatile Design: Perfect for road riding, touring, commuting, and more.
-
Tire Clearance: Fits up to 50mm tires for added comfort and versatility.
-
Geometry: Designed for comfort and performance, with a well-balanced riding position.
-
Durable Construction: Crafted from high-quality materials for long-lasting performance.
-
Ideal for Various Uses: Can handle mixed terrain with ease, and is great for fitness and adventure rides.
Specifications:
-
Rear Wheel Spacing: 135mm
-

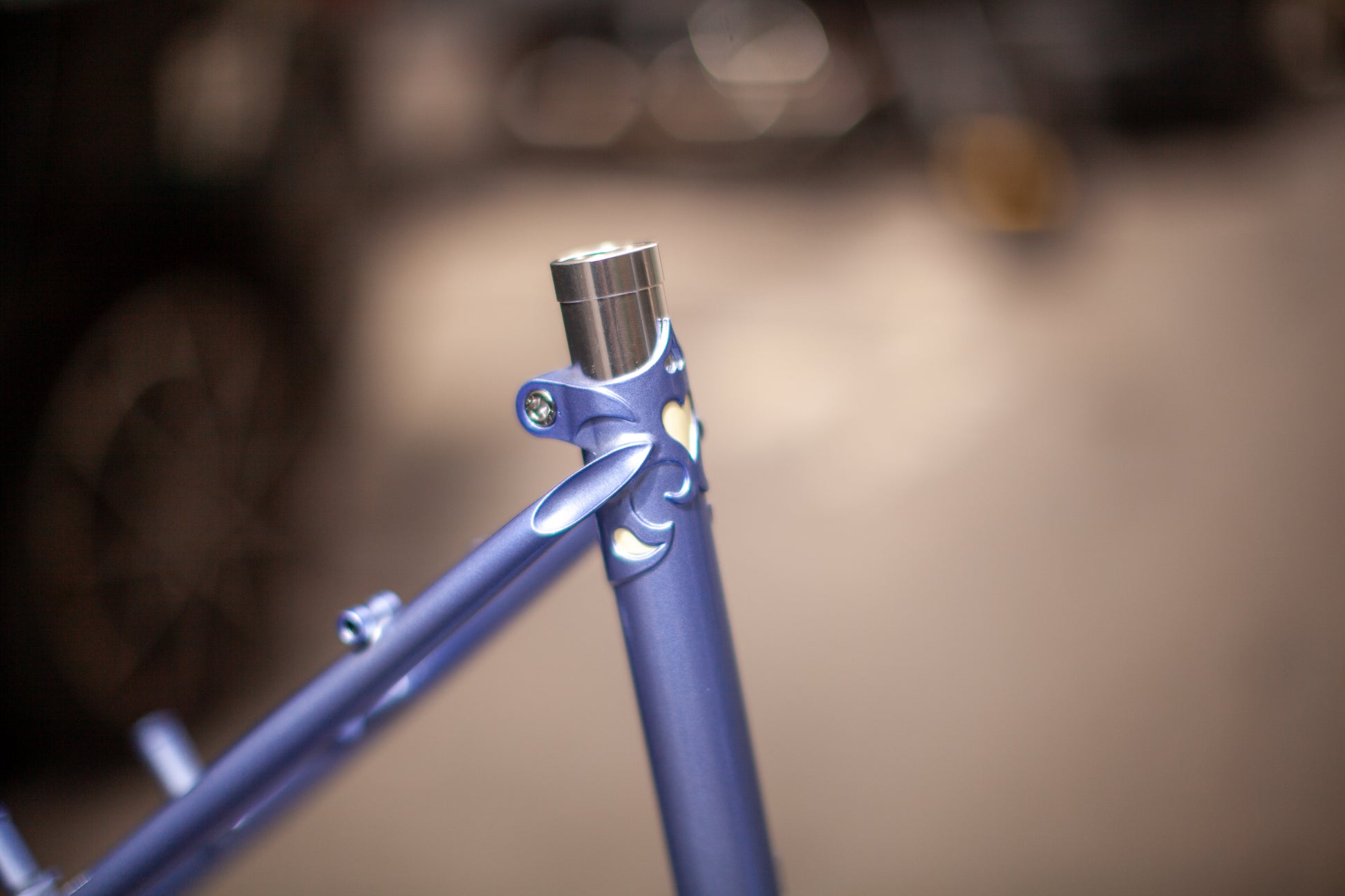

Seatpost Size: 27.2mm (Not included)
-
Bottom Bracket: 68mm English BSA Threaded
-
Head Tube Diameter: 28.6mm (for Front Derailleur Clamp)
-
Brake Compatibility: V-brakes (max rotor size: 160mm)
-
Material: High-quality chromoly steel
-

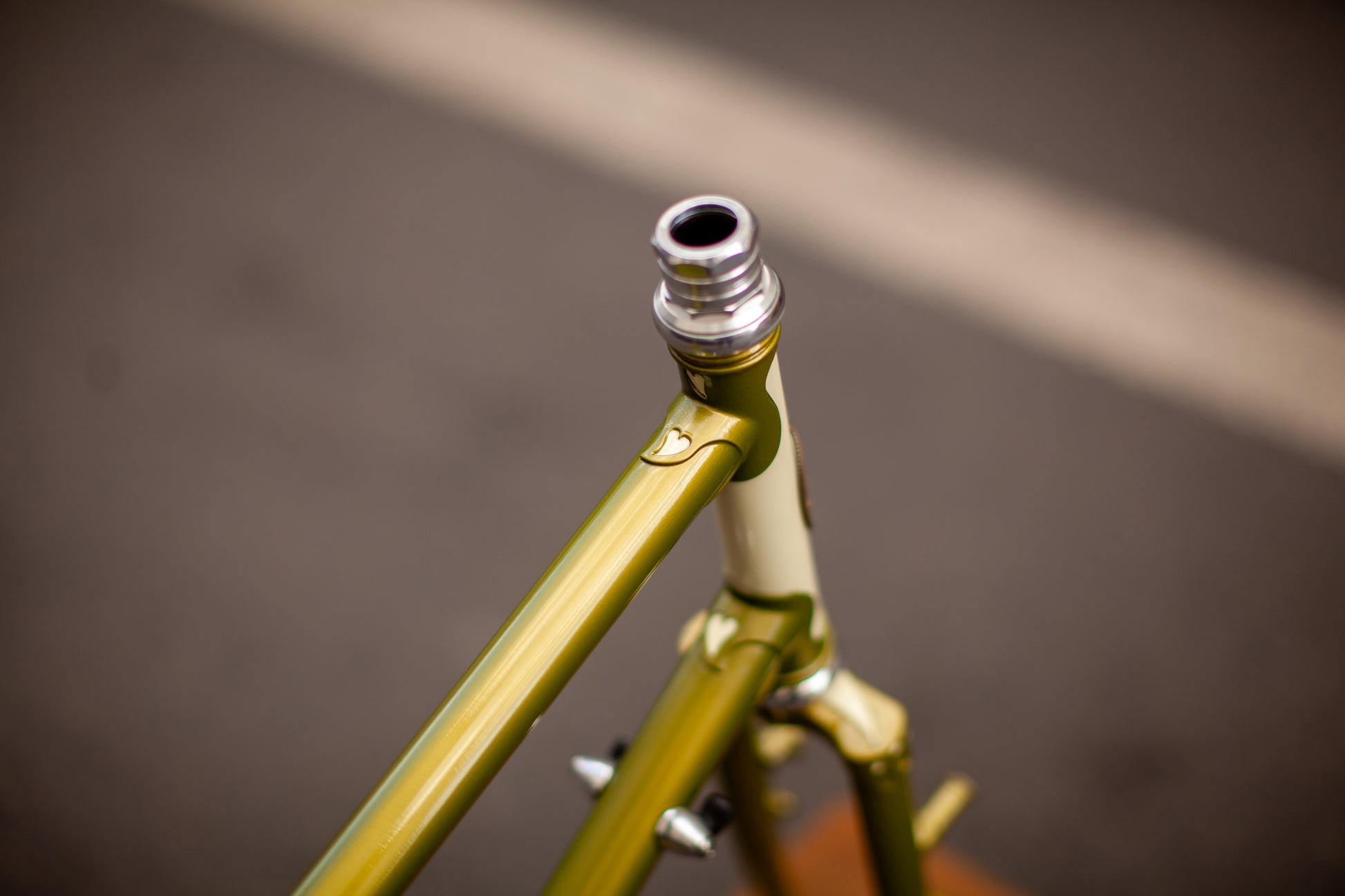

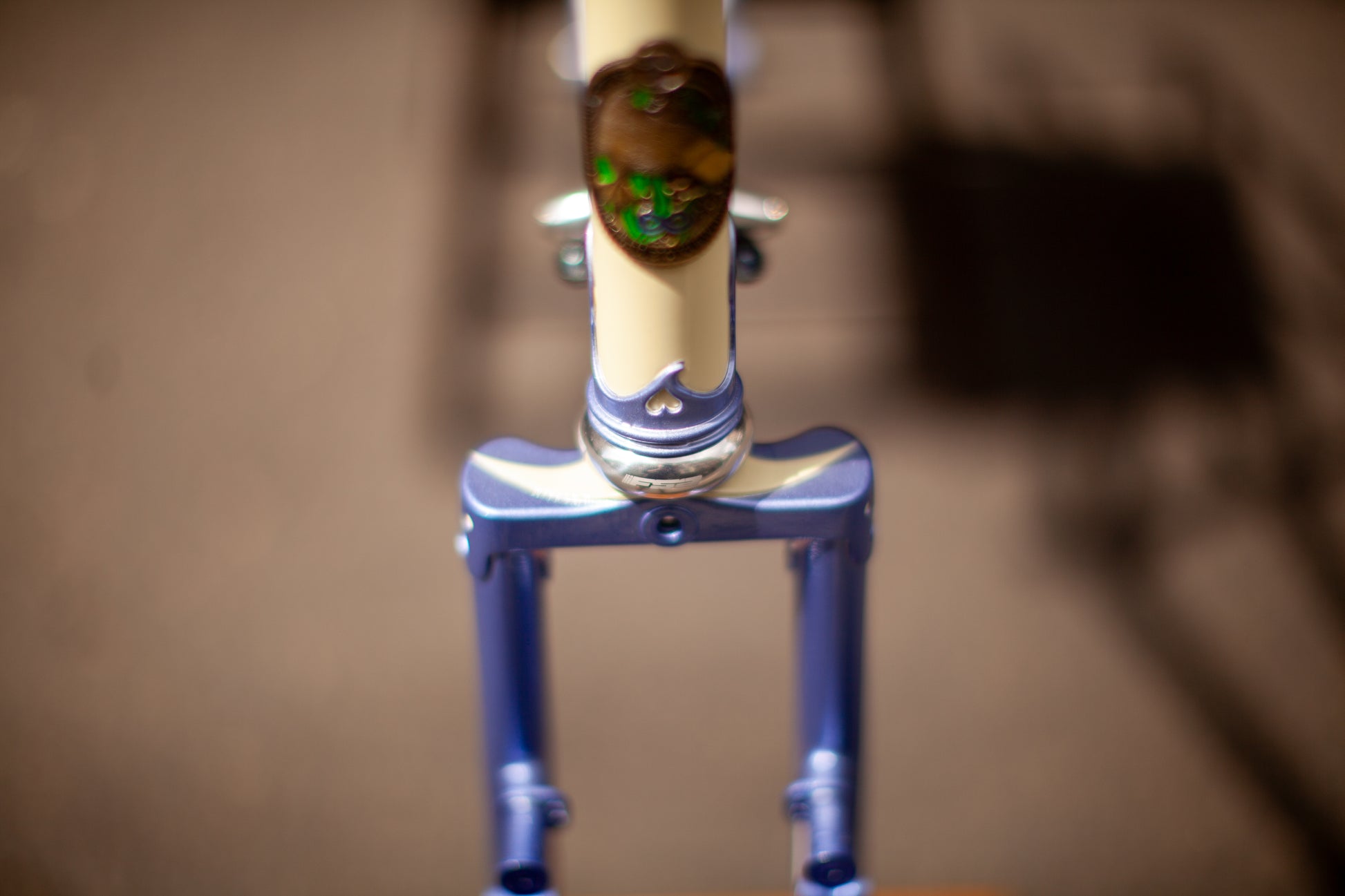

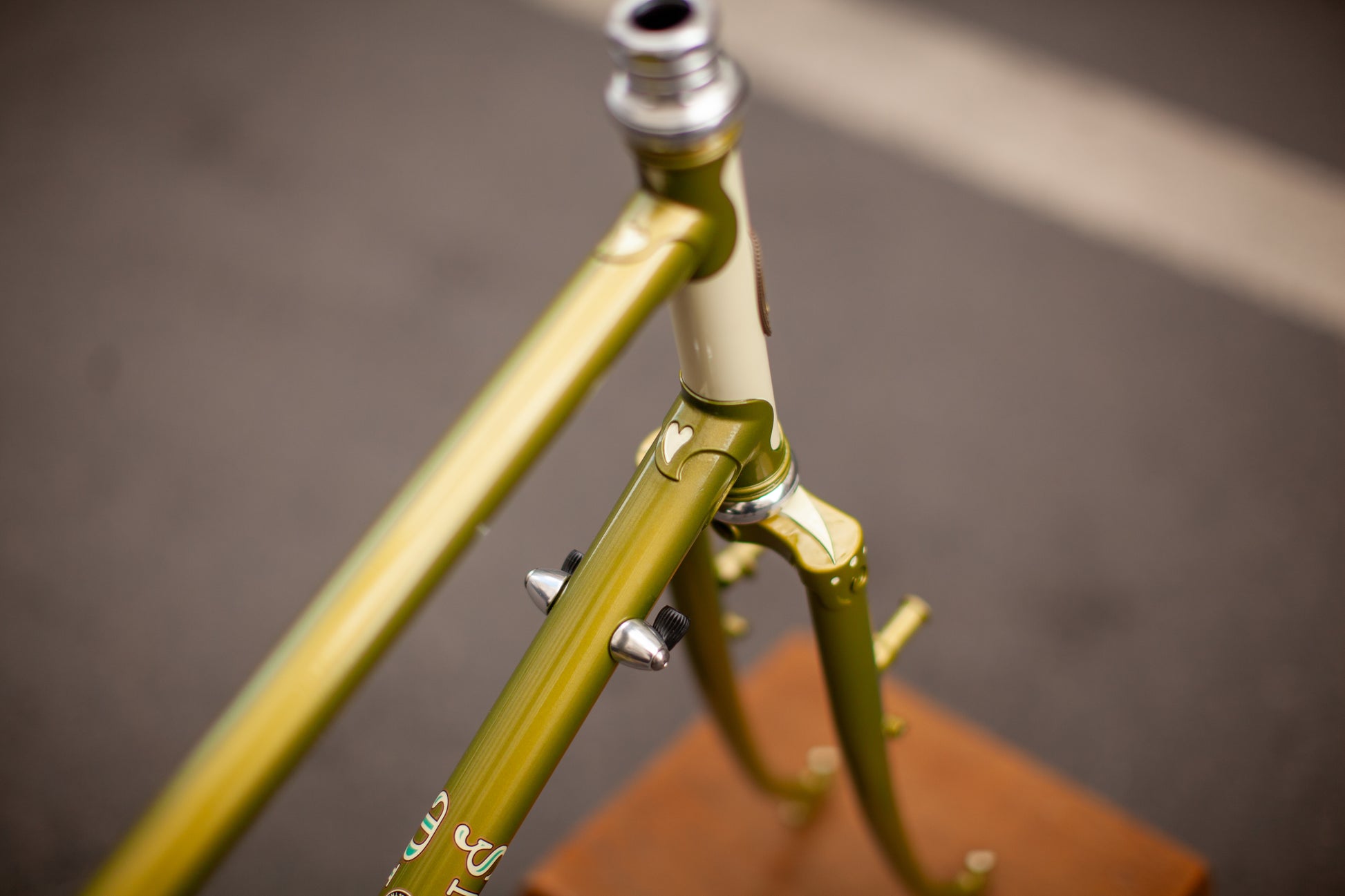

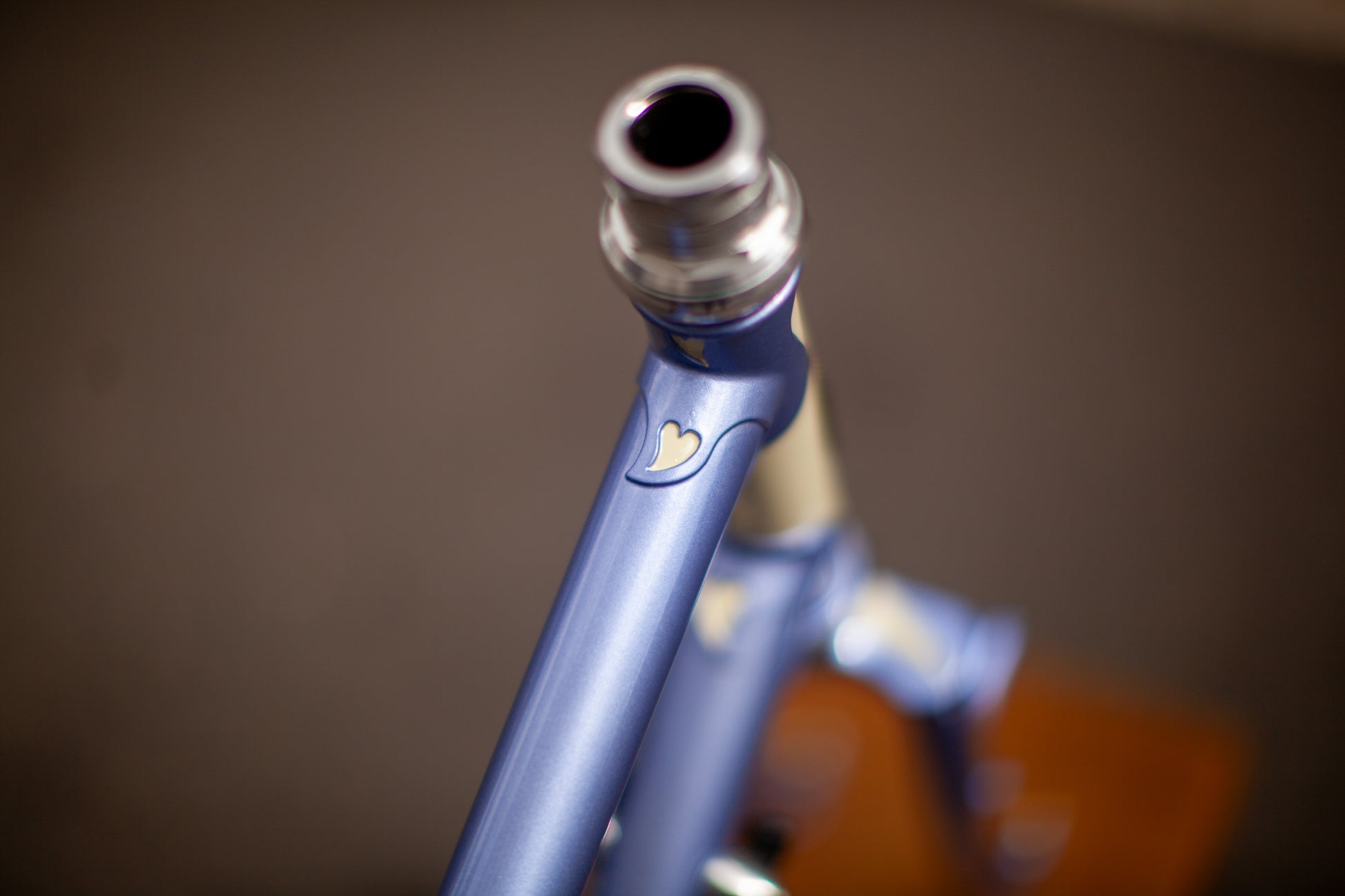

Steerer Tube Size: 1-1/8" (for integrated headset)
A 113mm bottom bracket and FSA Duron headset is included in the frame price, but no seatposts this time.
Geometry Chart:
Frame Size | XS | Small | Medium | Large | XL | XXL |
---|---|---|---|---|---|---|
Top Tube (Effective) | 520mm | 540mm | 560mm | 580mm | 600mm | 620mm |
Seat Tube (Center to Top) | 456mm | 502mm | 543mm | 574mm | 629mm | 670mm |
Head Tube Angle | 69.5° | 70° | 71° | 71° | 71° | 71° |
Seat Tube Angle | 74.5° | 74° | 73° | 73° | 73° | 73° |
Wheelbase | 1008mm | 1020mm | 1023mm | 1043mm | 1064mm | 1085mm |
Max Tire Width | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
Head Tube Length | 121mm | 132mm | 153mm | 177mm | 208mm | 241mm |
Chainstay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm |
